Frame style mixer

China Frame   style mixer supplier

Large Image :  Frame style mixer

Product Details:

Place of Origin: China
Brand Name: Loren
Certification: ISO
Model Number: KJB ... series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden box , poly bubble , naked as per demand
Delivery Time: Within 15 working days
Payment Terms: 30% T/T deposit , Balance before delivery
Supply Ability: 80 sets per month
Contact Now
Detailed Product Description
Material: SS304/316, Duplex Steel, Coated Carbon Steel As Per Water Quality Design: Diverfified
Applicant: Waste Water Industry And Other Agent Performance: Excellent With Long Life
Processing: Precise CNC Machine Outcome Reducer: Optional With Diversified Requirement
Export: To Many Countries

KJB frame type mixer is applied in flocculation reaction tank for the water supply and drainage works ,During mixing process, make sure the coagulant hydrolyze products quickly spread everywhere in the water so that all colloidal particles stabilize and cohesion almost at the same moment So as to get a good flocculation effect.

KJB mixer features: smooth operation, evenly stirring, excellent flocculation effect

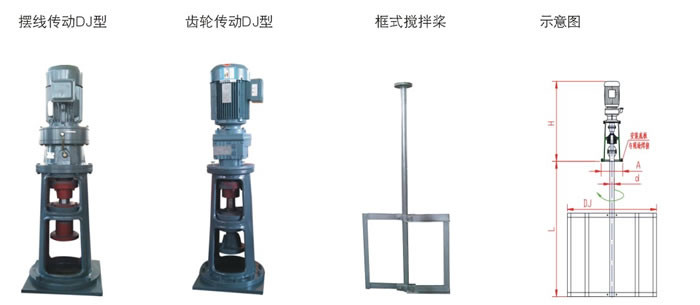

Frame   style mixer



Stirring Impeller Material:Carbon steel linings, carbon steel lined, , Tetrafluoroethylene, 304 or 316L stainless steel, 2507 or 2205 duplex stainless steel, titanium (TA2)material

KJB Mixer Data(Unit: mm)

Model Power (kw) Speed (rpm) (H) Shaft(L) Shaft DN Impeller DN Base Size(A)
KJB-800,1000 0.55 0.75   1050 <2500     320×320×16
KJB-1200 0.75   1150 <2500     360×360×16
KJB-1500 0.75 1.1   1250 <3000     360×360×18
KJB-1800,2000 1.1 1.5   1450 <3500     450×450×20
KJB-2200,2500 1.5   1550 <4000     500×500×20
KJB-3000 1.5 2.2   1750 <4000     500×500×20
