Product Details:

Place of Origin: China
Brand Name: Loren
Certification: ISO
Model Number: LIRD-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USDS 5000-50000
Packaging Details: As per demand or follow our standard export
Delivery Time: Within 40 days for container order
Payment Terms: 30% T/T deposit, Balance 7 days paid before delivery
Supply Ability: 800 sets per year
OEM: Provided
ODM: Provided as per basic requirement from you
Contact Now
Detailed Product Description
Feature: Can Resist 80 Degree Cecus Higher Temperature Coating: Epoxy, FRP Or Rubber Coating Or Lining
Quality: Body At Least 25 Years Design: Can Be Integrated With Other Process
Applicant: Almost All Industrial WWTP, Stp, Sea Water Desalination ASME/Ghost: Available

1. Applicant

It is mainly used for the separation and removal of fine suspended particles with a specific gravity of nearly 1.0. Airflow method (DAF) is a water purifier by making impurity particles adhering on a large number of fine bubbles to form their overall density of <1 state, so the bubble will take the impurities suspend solid rise on the surface to realize solid and liquid separation.

Loren LIRD-5 Duplex Stainless Steel Disslved Air Flotation for Sea water RO plant and Salty Braised Vegetable Wastewater

The main design parameters of the DAF process includes residence time, flocculation time, surface loading rate, reflux ratio, dissolved air pressure etc. The hydraulic retention time of the flotation tank is about 5 ~ 35 min with the surface loading rate as 2.5 ~ 8m / (m.h). Optimizing the dissolved air pressure and the reflux ratio can effectively reduce the operation and maintenance costs of the water plant. In addition, due to the short stay time, the cost of floating pond infrastructure costs less than that of sedimentation tank but can get better treatment results.



2. Model Selection

Model

Capacity

(m3/h)

air Volume(m3/h) Pump (kw) Compressor (kw) Skimmer(kw) Run Weight (kg)
LIRD-1 0.5~1 0.3~0.5 0.55 0.55 0.18 1800
LIRD-2 1.5~2 0.6~1 0.75 0.55 0.18 2100
LIRD-3 2~3 1~1.5 0.75 0.75 0.37 3600
LIRD-5 3~5 1.5~2 1.1 0.75 0.37 4400
LIRD-10 5~10 2~3 1.5 0.75 0.37 9400
LIRD-15 11~15 3~5 2.2 0.75 0.37 12400
LIRD-20 16~20 5~7 2.2 0.75 0.37 15000
LIRD-25 21~25 6~8 3 0.75 0.37 18000
LIRD-30 26~30 8~10 3 0.75 0.37 21000
LIRD-40 31~40 10~15 5.5 0.75 0.37 27000
LIRD-50 41~50 15~18 7.5 1.5 0.37 33000
LIRD-60 51~60 18~20 7.5 1.5 0.55 40000
LIRD-70 61~70 20~25 11 1.5 0.55 45000
LIRD-80 71~80 25~30 11 1.5 0.55 52000
LIRD-100 91~100 30~35 15 2.2 0.55 68000
LIRD-120 101~120 35~45 15 2.2 0.55 76000
LIRD-150 121~150 45~55 15 2.2 0.75 85000



The above data only for reference , please subject to our final confirmation



Loren LIRD-5 Duplex Stainless Steel Disslved Air Flotation for Sea water RO plant and Salty Braised Vegetable Wastewater




3. Feature

1. Covers small place with energy-saving , easy operation and simple management functions.

2. High efficiency of dissolved air with stable treatment effect by integration control of machine, electricity, instrument.

Loren LIRD-5 Duplex Stainless Steel Disslved Air Flotation for Sea water RO plant and Salty Braised Vegetable Wastewater

4. Structure and Working Principle

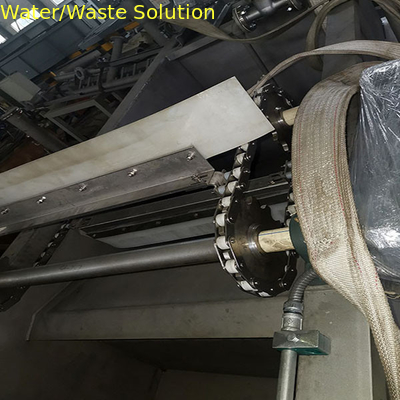

LIRD-XXX DAF is composed of floating pool body, dissolved air system, dissolved air return pipeline, dissolved air water release device, skimmer ( can be optional for combination style , Driving style or Chain plate style as per requirement )according to user needs can be combined, driving and chain plate) and electric control cabinet And other components.

Loren LIRD-5 Duplex Stainless Steel Disslved Air Flotation for Sea water RO plant and Salty Braised Vegetable Wastewater

DAF mainly help with solid-liquid separation (meantime also reducing COD, BOD, color, etc.). In the raw water by adding flocculant PAC or PAM, after effective flocculation reaction (time, dosage and flocculation effect to be determined by the experiment), the raw water then enters into DAF’s contact area. In the contact area, the micro-bubbles in the dissolved water and the flocs in the raw water are bonded to each other to enter the separation zone. Under the action of the buoyancy of the bubbles, the flocs rise to the liquid level with the bubbles to form scum. The scum is scraped to the sludge area via skimmer. The lower fresh water flows through the sump to the clear water tank. Part of the water will reflux for the use of dissolved air system, the other part is discharged.

Loren LIRD-5 Duplex Stainless Steel Disslved Air Flotation for Sea water RO plant and Salty Braised Vegetable Wastewater



5. Structure and Working Principle

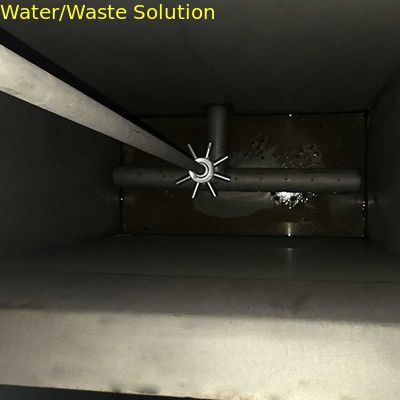

The return of water goes through the jet suction device which will make the air maximized dissolving into the water to form dissolved air water which will quickly release the pressure through the air tank in the DAF contact area .then it will generate a diameter of 3030um~50um micro-bubbles whose main function is to adhere the flocs in the raw water
