mine ore paste thickener with metal body for ore tailings after flotation

China mine ore paste thickener with metal body for ore tailings after flotation supplier

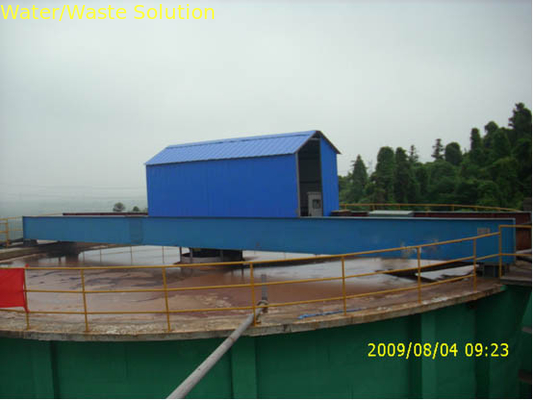

Large Image :  mine ore paste thickener with metal body for ore tailings after flotation

Product Details:

Place of Origin: china
Brand Name: LI
Certification: ISO 9001:2008
Model Number: LINXZ-16

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Contact Now
Detailed Product Description
Capacity: 50-150 Ton/h Material: Can Be Carbon Steel Or Stainless Steel
Center Driving System: Hydraulic Drive With Station Line

A.   Equipment Technology table

Item and Type:Deep cone thickener;NXZ16                  Quantity :1 set

SN

Content

Technical Function Data

Comment( field Standard)

1

Pool ID

16 m

1.GB10605—2003



2.GB50236-98 onsite equipment, pipeline welding and inspection specification

3.JGJ81-2002 Construction steel welding procedures

4.GB50205—2001 Steel Structure Construction Quality Acceptance

5.GBJ122-88 Noise measurement specification

6.GB50153-92 Uniform standards of reliability engineering structure design

7.GB50235-97 Industrial metal pipeline construction and acceptance

8.GB/T 12771-2008"Fluid transport stainless steel welded pipe."

9. GB/T 4064-1983"Electrical equipment safety design guidelines."

10. GB/T 8923-1988"Steel surface before painting Rust grades and preparation grades."

11.HG/T20569-1994"Mechanical mixing equipment."

12.GB50231-98"Mechanical equipment installation construction and acceptance of universal norms"

13.GB/T 3766-2001 General technical conditions for the hydraulic system

2

Settled area

200 m²

3

Pool floor Slope

12 Degree

4

Poll side height

4101mm

5

Driving System

Center hydraulic drive

6

Rake support speed

0.11-0.24r/min

(adjustable hydraulic)

7

Rake mounting height

400mm

8

Rake mounting speed

50~100mm/min

(adjustable hydraulic)

9

Hydraulic drive power

7.5KW(Drive)

10

Hydraulic System working pressure

16 Mpa

11

Rake lift pressure

10 Mpa

14

Overflow solid content

30ppm

B.Technique Data for DN 16m , Torque 45kNm high efficiency Thickener

General Characteristic

DN 16m Thickener

Model

Hydraulic center drive with auto rake lifting

Design Torque

45 kNm

DN

16 m

Pool Straight edge height

4101 mm

Bottom slope

12 degree angle

Bridge type

Pool cover

Bridge

Sidewalk and guardrail

Supplied by manufacturer

Material

Pool

Q235A (Supplied by manufacturer)

Pool support

Q235A (Supplied by manufacturer)

Bridge

Q235A(Supplied by manufacturer)

feeding barrel assembly

Q235A

Center drive tube

Q235A

Feeding tube

Q235A

Rake support assembly

Q235A

Control cabinet

Q235A+body  use SS.316

Driving device

Q235A+body

Rake driving device specification

Driving way

Rotary gears and planetary gear drive pinion

Drive torque protected form

Oil Pressure Sensor (hydraulic)

Driving way

Hydraulic motor

Driving power

7.5 kW

Shaft power

3.3 +1.0kW

Reducer



Model

Planetary gear reducer

Manufacturer

We recommend  Intermot

Speed ratio

46.7:1

Model

IYH-15000

output speed

0~10. rpm(adjustable hydraulic pressure )

Rated max. torque

12500 (Nm)

Max. running torque

15000 (Nm)

Normal running torque

4160 (Nm)

Overage output speed

0.6(RPM)



Drive pinion



Material

50Mn

Quantity

1 pc

Thickness

85mm  140mm

Gear No.

14  9

Slewing ring( support) gear



Design Life

>100 000 Hour under max. running torque

Pressure angle

20º

Gear No.

86

Quantity

1 pc

Thickness

90mm

Modulus

6 pcs



Hydraulic System

Supplier

We recommend company: yuken (Japan )

Oil pump motor

We recommend company: shanghai shenli

Motor power

7.5 kW

Speed

1450rpm

Hydraulic pump  10SCY14-D

Model style

Impeller style

Discharge volume

~10 cc

Hydraulic motor   MLFY-PB1099BM10217

Quantity

1 PC

Rake mechanism

Center scraper or blade

Quantity

1

Material

S.S.316

Whether removable

YES

Rake (support)

Long rake

2 pcs

Short rake

2 pcs

Type

Cylindrical tube

Total Quantity

4 pcs

Rake scrapper or blades



Long one Quantity

2×4 pcs

Short one Quantity

2×2 pcs

Total Quantity

12 pcs

Remark:(a) Scrapper Angle 45 degree    (b) Scrapper: Can be removable or replaceable

Torque Description

Torque-sensing form (hydraulic)

Method

Oil Pressure

Type

Pressure Transmitters

Control Cabinet

Mounting position

On the bridge

Operating function

Drive start / stop



High torque alarm



Field or on site Torque display



Automatic / manual conversion

Design torque (33%)(depends on craft condition )

15,000 N

Max. running torque

45,000 Nm

Mechanism device design torque  (1.5)

67,500 Nm

High torque alarm value (50%)

22,500 Nm

Rake drive setting value (100%)

45,000 Nm

C .Main sub purchasing parts list (single set or pc):

SN

Item

Manufacture or place

Type

NO.

Comment

A. Main body of the thickener

1

Planetary gear reducer

Shanghai great technology

012.30.630.001.04.11

1 pc



2

Hydraulic motor

Intermot

PB1099

1 pc



3

Mounting oil cylinder

US

HSG-60

2 pcs



4

Mud layer pressure transmitter

Japan Siemens

VPS-V2

1 pc



5

Rake position sensor switch

Shanghai SEIKO

CKD-TOH

2 pcs



B. Hydraulic station

1

Liquid pump

Yuci

63SCY/4KW-4B10

1 pc



2

Main control hydraulic pump

yuken (Japan )

MPA-01-04

1 pc



3

Hydraulic system pressure transmitter

yuken (Japan )

NY-016

1 pc



4

System pressure regulating valve

yuken (Japan )

DSG-01-3C4

1 pc



5

Pump driven motor

Nanyang frame-proof

YB2-2-4

1 pc



C. Main control cabinet

1

PLC

Japan Siemens

ST-200 CPL224

1 pc



3

Low-voltage electrical

CHINT group

Assembly

1 set





Mark LV-Electronic includes rake driven and rake mounting button , pc local /remote switch , pc high torque alarm , rake starting lifting position indicator





D.   Supply scope

S.N.

Item

Unit

No.

Comment

1

Efficient feed hopper assembly

set

1

With incoming barrel, tube, flocculants tubes, support or bracket, down block and self-dilution devices.

2

Central drive device

set

1

With motor , reducer, cylinder, Slewing ring, base etc.

3

Rake assembly

set

1

With short and long rakes , Rake connecting rod, and bottom blade or scrapper

4

Center drive shaft assembly

set

1

With center drive shaft, flange and center scrapper



5

Bridge assembly

set

1

With fence, grid plate and center support tube coupling seat

6

Hydraulic control device

set

1

With control box, pump ,motor, PLC, LV electronic, components, sensors , oil tubes ,gauges etc.

7

Steel Pool body

set

1

With pool body , overflow weir, tube joint and flushing device

8

Pool tank support section

set

1



9

Escalator or rail

set

1
