Cyclone grit chamber sand suction machine/ Vortex Sand Removal System with grit separator together

China Cyclone grit chamber sand suction machine/ Vortex Sand Removal System with grit separator together supplier

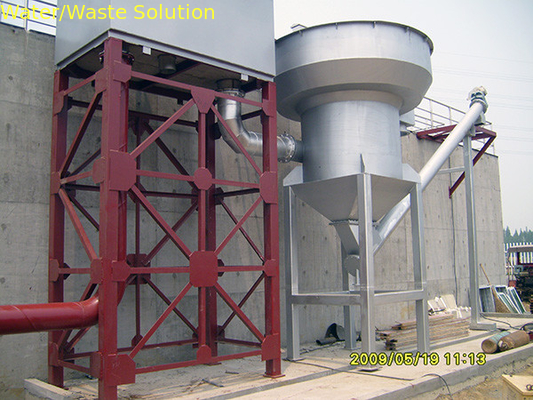

Large Image :  Cyclone grit chamber sand suction machine/ Vortex Sand Removal System with grit separator together

Product Details:

Place of Origin: China
Brand Name: LI
Certification: ISO9001:2008
Model Number: LIXLC-180/14400

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Price: USD 5000-200002
Packaging Details: Wooden box
Delivery Time: Within 45 days for 20GP
Payment Terms: T/T or western union
Supply Ability: 1000 sets per season
Contact Now
Detailed Product Description
Tank: Can Be Civil Engineering Or Steel Structure Suitable For: Separate Those Solid Grain Dn Over 0.5mm
Motor Power: 1.5-11KW Incoming And Output Access Channel Angle: No Less Than 270°
HRT: 20-30 S Hydraulic Surface Loading: 200 M3 Per Hour
Flow Speed: 12-20 RPM

XLC model Cyclone grit chamber sand suction machine/ swirl stream grit tank removal unit /Rotating blade grit removal unit

Brief introduction

This unit generally applied after fine bar screen (mechanical grid),before entering primary sedimentation tank, this machine can separate large grain (DN over than 0.5mm) in sewage, most adopt air lifting , if use pump lifting, it has a high requirement of pump damage, the steel tank body applied in mediate and small flow volume field.

Cyclone grit chamber sand suction machine/ Vortex Sand Removal System with grit separator together

Working Principle and Structure

Raw water  enters from tangential direction to form swirl stream with a certain velocity and flow pattern by impeller so that the adhesion of organic matter in the sand, gradually washing each other, and the resistance of gravity and swirling sand bucket sink to the center of action, stripped of organics with axial flow upward overflow away. Sand bucket sand accumulation through the air lift pump or sand pump upgrade into sand-water separator completely separated, sand separated row to the trash (tube) Sinotrans, sewage back to the grill well.

Feature and characteristics

1. Small footprint

2. Sand sedimentation efficiency influence little by water volume change.

3. Excellent separating function with little water moisture and organic material to fit for transport.

4. Fully automatic PLC control  safe and stable sand wash and removal period.

5. Easy operation and simple maintenance with long life

6 .advanced blower makes sure low noise .

7. Little influence toward surrounding environment with nice sanitary condition.

Cyclone grit chamber sand suction machine/ Vortex Sand Removal System with grit separator together

Function and Parameter

Data

Model

Capacity

(m³/h)

Speed (RPM)

Power (KW)

Sand volume (L/s)

Blower

Wind volume (m³/h)

Pressure (Kpa)

Power   (KW)

XLC180

180

12-20

1.1

7.8

1.43

34.3

1.5

XLC360

360

9.5

1.79

34.3

2.2

XLC720

720

1.75

39.2

2.2

XLC1080

1080

XLC1980

1980

12-20

1.1

11

2.03

44.1

3

XLC3170

3170

1.98

53.9

4

XLC4750

4750

XLC6300

6300

2.01

58.8

4

XLC7200

7200

XLC9000

9000

15

2.42

69

7.5

XLC12600

12600

2.34

78

7.5

XLC14400

14400

2.65

88

11



Comment:

1. Hydraulic surface loading:200m³/h.

2. HRT:20-30s.

3.Water inlet flow speed Q=(40-80%)Qmin,V=0.6-0.9m/s; Q=Qmin,V>1.2m/s; Q=Qmin,V>1.2m/s;

4. incoming and output access channel angle no less than 270°

Craft flow diagram

Cyclone grit chamber sand suction machine/ Vortex Sand Removal System with grit separator togetherCyclone grit chamber sand suction machine/ Vortex Sand Removal System with grit separator together



Specification Data Table

Data

Model

A

B

C

D

E

F

G

H

J

K

L

XLC180

1830

1000

305

610

300

1400

300

300

300

1100

1100

XLC360

2130

380

760

1400

300

300

300

1100

XLC720

2430

450

900

1550

400

300

400

1150

XLC1080

3050

610

1200

1550

450

300

450

1350

XLC1980

3650

1500

750

1500

400

1700

600

510

580

1450

XLC3170

4870

1000

2000

2200

1000

510

600

1850

XLC4750

5480

1100

2200

2200

1000

610

630

1850

XLC6300

5800

1200

2400

2500

1300

760

700

1950

XLC7200

6100

1200

2400

2500

1300

760

750

1950

XLC9000

7315

1875

3350

2515

1300

760

1675

2845

XLC12600

8535

1980

3950

2895

1525

760

1980

3200





Order Notice

1. Please specify the project item when ordering

2. Confirming the material of body: Carbon steel or stainless steel

3. This system not including valves, pipeline and flow gauge, if needed, please specify.

4. This equipment flange made as per JB/T81-94,PN0.6

5. XLC180~XLC1080 can be made as steel unit supply , model over XLC1080, can make as concrete tank or on site welded into steel tank body , if need un-standard flow grid removal system , please provide the civil engineering drawings in detail .

6. Other special model or specification can touch us for detail information.
