blue ,white, yellow PP/PVC inclined media filler for lamell settler

I'm Online Chat Now

blue ,white, yellow PP/PVC inclined media filler for lamell settler

China blue ,white, yellow PP/PVC inclined media filler for lamell settler supplier
blue ,white, yellow PP/PVC inclined media filler for lamell settler supplier blue ,white, yellow PP/PVC inclined media filler for lamell settler supplier blue ,white, yellow PP/PVC inclined media filler for lamell settler supplier

Large Image :  blue ,white, yellow PP/PVC inclined media filler for lamell settler

Product Details:

Place of Origin: china
Brand Name: loren
Model Number: LCF-50/80

Payment & Shipping Terms:

Minimum Order Quantity: 300 m3
Packaging Details: standard wooden box or customized
Delivery Time: within 5 working days
Contact Now
Detailed Product Description
Product Name: Sand Filter Media Inclined Plastic Fill Plate Tube Dimension: 1000*1000*866mm, 1000*1000mm Or Customized
After Sales Service: Online Instruction Or Onsite Service Material: PP/PVC, PVC, PP
Orifice: 25mm, 35mm, 50mm, 80mm Weight: 0.5-1 Kg
Thickness: 0.35-1mm Usage: Waste Water Treatment
Applicant: Sedimentation Tank For Waste Water Treatment

Sand Filter Media Inclined Plastic Fill Plate Tube Settlers

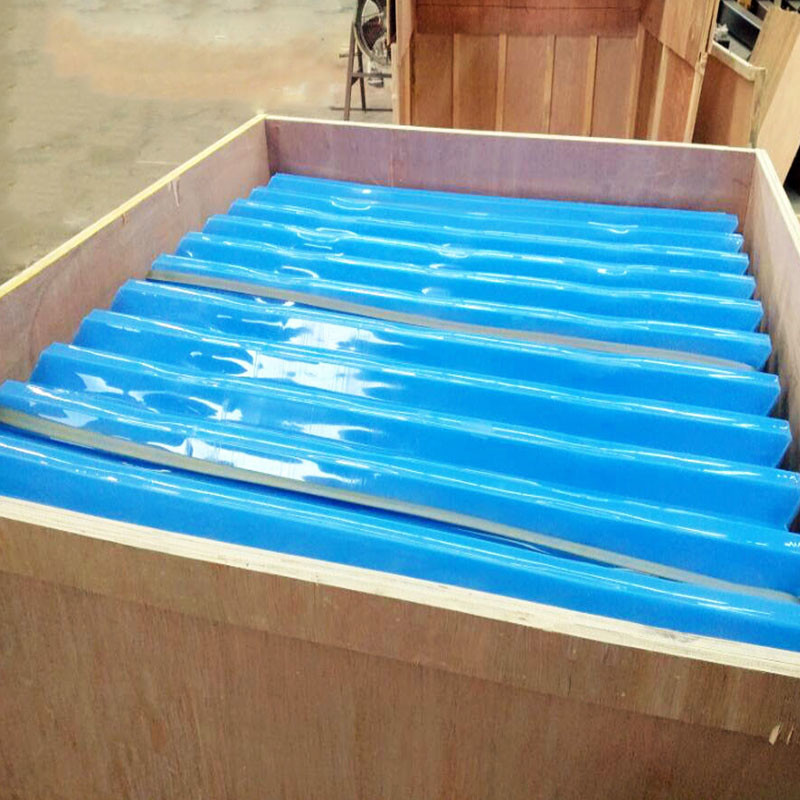

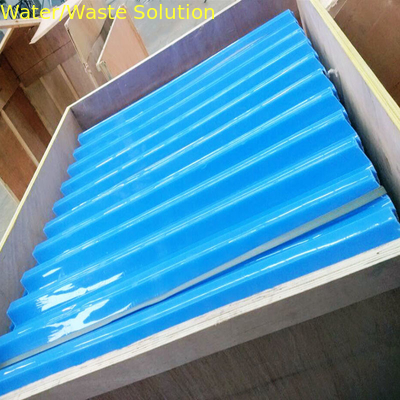

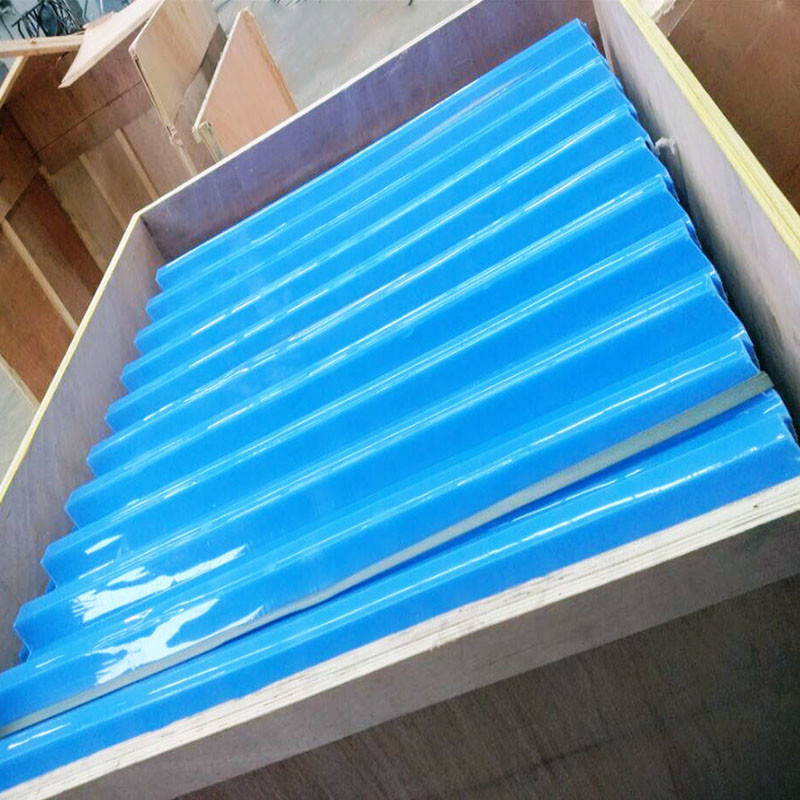

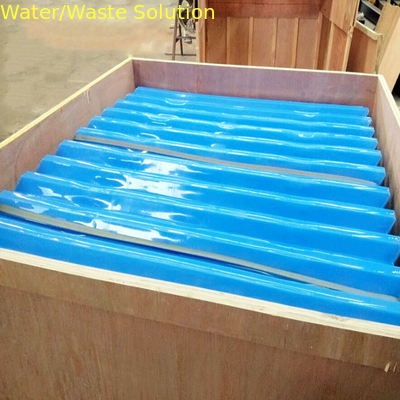

Packaging Details

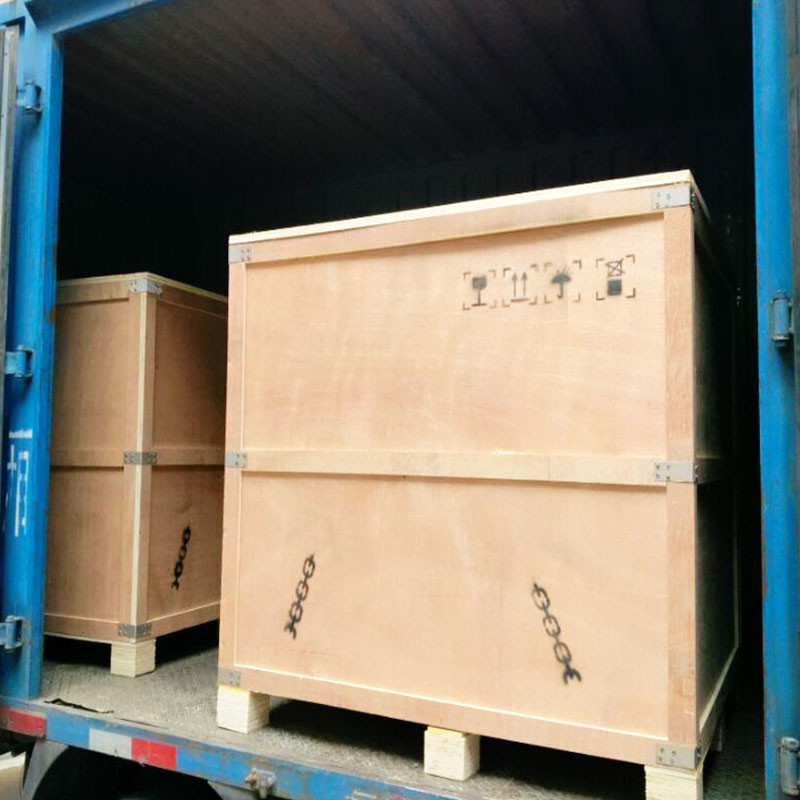

Waste water clarifier tube settler plate settler lamella tube settler media packed with wooden pallets

Port

Tianjin Port / Shanghai port

Lead Time :

Quantity(Cubic Meters) 1 - 100 >100
Est. Time(days) 10 To be negotiated


Waste water clarifier tube settler plate settler lamella tube settler media



Waste water clarifier tube settler plate settler lamella tube settler media

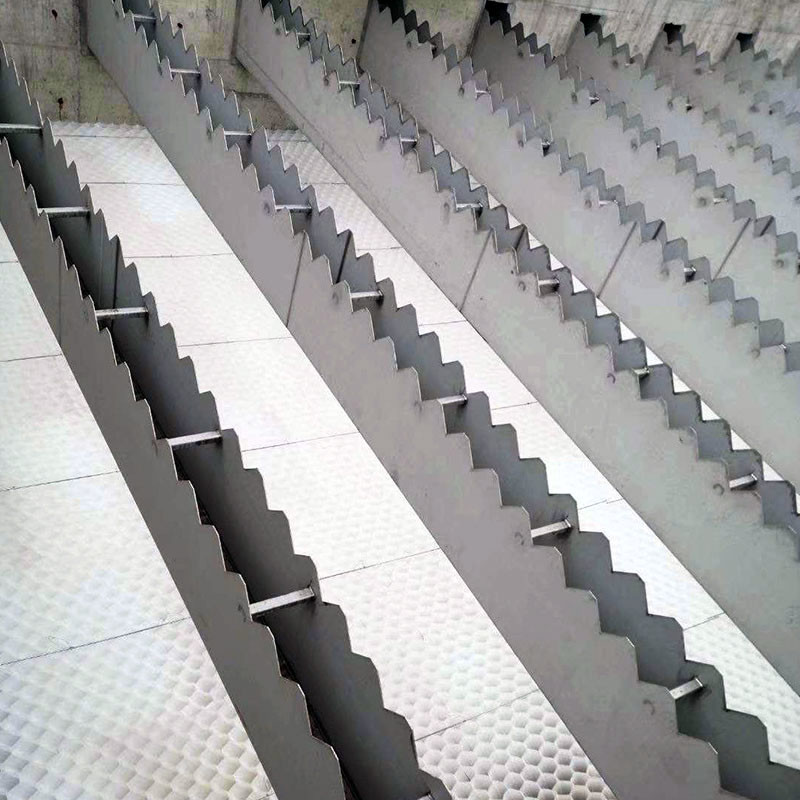

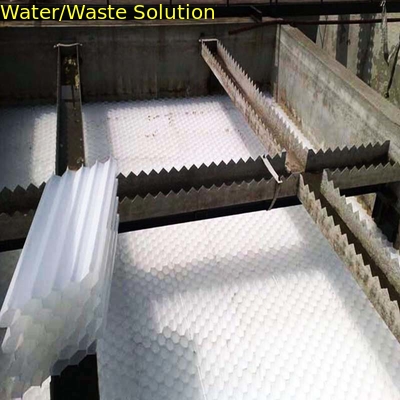

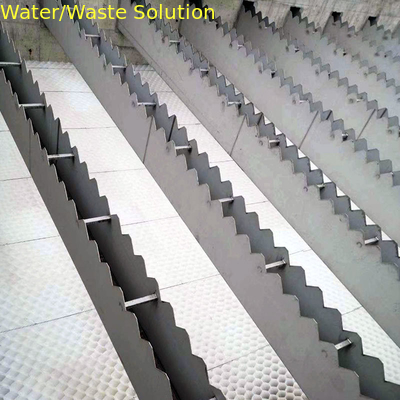

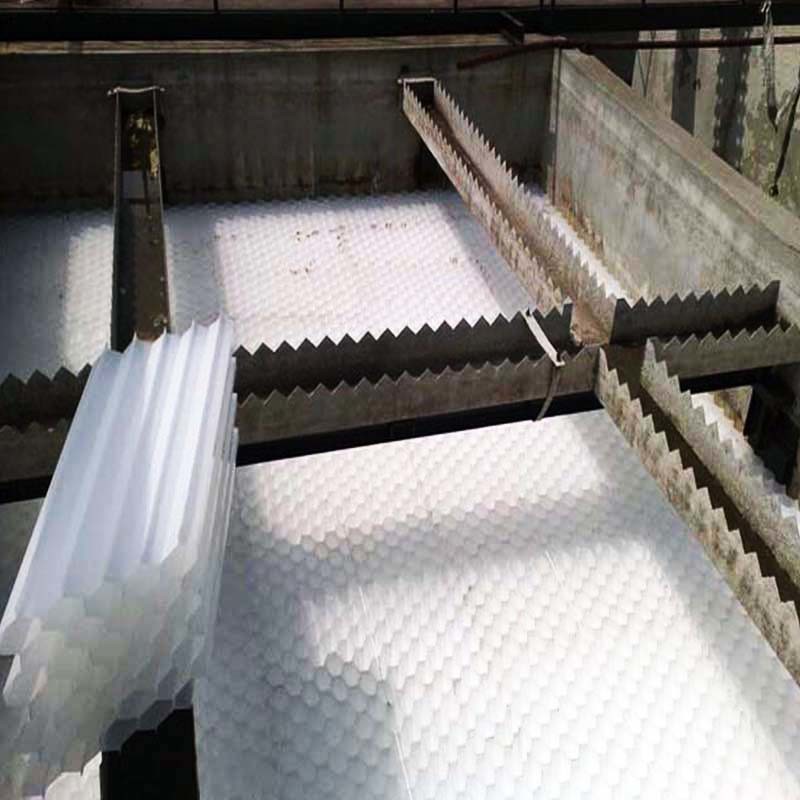

Tube settler, also called lamella clarifers,are used to remove solids or sand in the waste water treatment. Tube settlers use multiple tubular channels slopped at an angle of f 55°- 60° degress and adjacent to each other, which combine to form an increased effective settling area.

This provides for a paticle settling depth that is significantly less than the settling depth of a conventional clarifer,reducing settling times.



Sinta could support you with PP tube settler ot PVC tube settler media,Thickness and sheet size can be customized.

Why Tube Settlers ?

Tube settlers offer an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance.
They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.
Made of lightweight PVC, tube settlers can be easily supported with minimal structures that often incorporate the effluent trough supports.

They are available in a variety of module sizes and tube lengths to fit any tank geometry, with custom design and engineering offered by the manufacturer.

Advantages of Waste water clarifier tube settler plate settler lamella tube settler media

The advantages of tube settlers can be applied to new or existing clarifiers/basins of any size:
* Clarifiers/basins equipped with tube settlers can operate at 2 to 4 times the normal rate of clarifiers/basins without tube settlers.
* It is possible to cut coagulant dosage by up to half while maintaining a lower influent turbidity to the treatment plant filters.
* Less filter backwashing equates to significant operating cost savings for both water and electricity.
* New installations using tube settlers can be designed smaller because of increased flow capability.
* Flow of existing water treatment plants can be increased through the addition of tube settlers.
* Tube settlers increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks.



Sheet size and thickness can be customized.

Item Tube settler media

Material

PP

PVC

FRP

Diameter( mm)

φ35

φ50

φ80

φ35

φ50

φ80

φ35

φ50

φ80

Sheet quantity /m2

40

32

20

40

32

20

40

32

20

Thickness (mm)

0.5

0.45

0.7

0.5

0.45

0.7

0.5

0.5

0.7

Weight (kg/m2)

21

16

16

31

23

23

41

31

31

One sheet size(mm)

1000×1000×δ

1000×1000×δ

1000×1000×δ

One block size(mm)

1000×1000×866

1000×1000×866

1000×1000×866

Application

Water supply,

sewage water

sewage water

Water supply,

sewage water

Color

White

Blue

Can be customized

Assemble method

Electrical heating

Glue

Glue

installation angle

60°

60°

60°

temperature

5~50℃

5~50℃

5~70℃

Proportion g/cm3

0.92

1.35~1.46

1.8

Product feature

Flexible, easy to float



easy to degrade

friable

acid and alkali resistant

Transportation mode

By loose sheets

By loose sheets

By loose sheets






  • Clarifers/basins equipped with tube settlers can operate at 2-4 times of the normal rate of clarifers/basins without tube settlers.
  • It is possible to cut coagulant dosage by up to half while maintaining a lower influent turbidity to the treatment plant filters.
  • Less filter backwashing equates to significant operating cost savings for both water and electricity.
  • New installations using tube settlers can be designed smaller because of increased flow capability.
  • Flow of exixting water treatment plants can be increased though the addtion of tube settlers.
  • Tube settlers increase allowable flow capacity by expanding settling capacity and increasing the solids.
