Fine screen, stainless steel grid for sludge and solid removal in water treatment
2 sets
MOQ
USD 5000-200002
Price

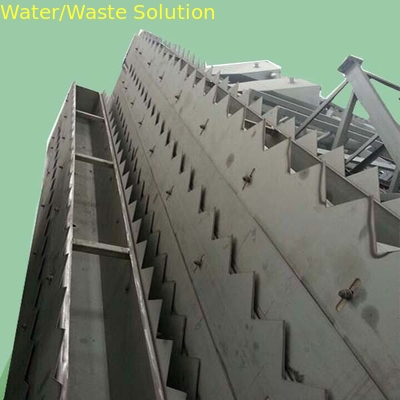

Fine  screen, stainless steel grid for sludge and solid removal in water treatment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LI
Model Number: LIFS-1300
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Within 45 days for 20GP
Payment Terms: T/T or western union
Supply Ability: 1000 sets per season
Specifications
Max. Width Of Well: 3M
Max. Depth Of Well: 10M
Screen Gap Available: 1, 3, 5, 10,15, 20 Mm
Mounting Angle: 60, 70,80 Degree
Sequence Gear Material: Nylon, SS.304, SS316L, 2205, 23750 Available
Max Capacity For Single Unit: 10000 M3 Per Hour
Product Description

 This high efficiency  Fine  screen enjoy long reputation over the world

our mill is the very earliest professional in all kinds of grid production and deveopment

Fine  screen, stainless steel grid for sludge and solid removal in water treatment 0





Specifications



1.Structure tight, high degree of automatic 2.Low power, high separation efficiency 3.Corrosion resisting



The Hydroscreen unit is a proven, reliable performer for liquid/solid separation in municipal and industrial applications, particularly for screening fibrous and nongreasy solids. There are no moving parts, motors, or complicated connections. The Hydroscreen is simple and economical to operate. Although the Hydroscreen is one of the most basic Gongyuan screens, it is designed with quality and custom features to meet site requirements. It is compact and provides high throughput. There are headbox options, including deep flat and shallow tapered designs to accommodate solids loading. A swinging baffle across the weir directs the flow for the most efficient screen operation. The Hydroscreen unit’s unique bi-wave wedgewire screen panel, with double downward curves, increases the Coanda effect by rapidly stripping liquid from the influent as it hits the top of the screen panel. The rapid shearing maximizes solids capture and minimizes screen blinding. Additional drainage occurs as the solids captured by the screen roll down the curved screen face. At the end of the screen panel is a drip lip that directs the drained liquid away from the solids and returns it to the filtrate chamber.



Fine  screen, stainless steel grid for sludge and solid removal in water treatment 1

Main technical data

Model Screen width(mm) Channel width(mm)

FH-300 300 335

FH-400

400

435

FH-500

500

535

FH-600

600

635

FH-700

700

735

FH-800

800

835

FH-900

900

935

FH-1000

1000

1035

FH-1100

1100

1135

FH-1200

1200

1235

FH-1300

1300

1340





Fine  screen, stainless steel grid for sludge and solid removal in water treatment 2
