|Condition:||New||Type:||Fabric Dust Collector|
|Efficiency:||99.9%||Min. Particle:||1 Micron|
|Dimension:||10040 X 2364mm X 8500m||Air Volume:||5000 - 120200m3 / H|
|Filter Area:||96 - 1728 M2|
Industrial smoke purifier is on the basis of the conventional short pulse bag dust catcher developed a kind of new type, high efficiency bag filter.
It combines chamber blow and pulse blowing ash removal technology, the advantages of the automatic control of ash removal mechanism, give full play to the strong blowing compressed air soot cleaning effect;
Long filter bag design, reduce the steel consumption, reduce the area; According to the requirements of the application condition of can with various kinds of filter material, meet the needs of high efficiency dust removal.
Dusty gas enter into the box through air inlet, the dust is left on the outside surface of the filter bag.
With the equipment continuously working, dust adhere to the filter bag increasingly that makes equipment resistance increase. Then the pulse device works to make dust off and drop to the hopper, clear away by ash removing equipment.

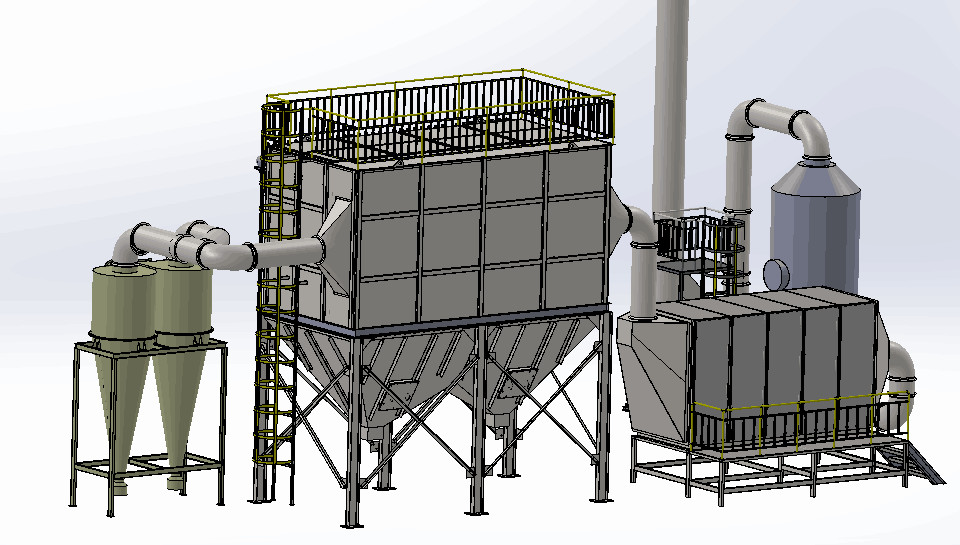

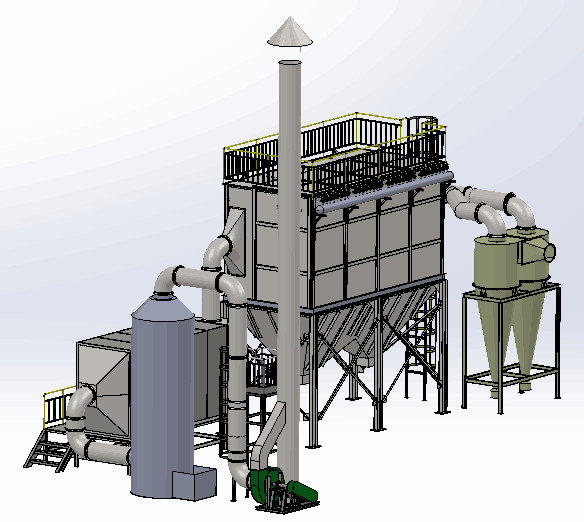

LSFP type long bag pulse dust collector is mainly composed of cabinet, filter bag, ash hopper, air inlet and outlet device.
Also equipped with basic support, ladders, railings, access doors, compressed air system, ash cleaning control system, ash unloading system, etc. It can be designed according to the user requirements of advanced equipment operation monitoring system.
1. Long filter bag design, could reduce the steel consumption, reduce the floor area.
2. High adaptation, LCDM long-bag pulse dust collector can adopt to large fluctuation range of the dusty gas. Non-standard design can be provided according to the customers' requirements.
3. Low emission concentration, can ensure less than 50mg/m³. This LCDM type bag filter can meet the strict demand of environmental protect.
4. Anti-leakage design, make the leakage rate to the lowest about 4%.
5. Full steel structure design, convenient transportation and installation of equipment, and ensure the accuracy of the equipment;
6. Three pulse cleaning state design, to realize the best results and efficiency of ash removal.
7. Adopt the advanced programmable control system (PLC);
LSFP type long-bag pulse dust collector can be widely used in metallurgy, machinery, chemical, power, light industry and other industry dust gas purification and material recycling.
