Continueous Steam sludge drying machine/High Quality Commercial And Industrial Types Used Stainless Steel Waste Sludge
1 sets
MOQ
as per model
Price
Continueous  Steam  sludge drying machine/High Quality Commercial And Industrial Types Used Stainless Steel Waste Sludge
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Loren
Certification: CE, ISO ,CCC,
Model Number: LSD series
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: within 30 days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 50 sets per month
Specifications
Dryer Sludge Moisture: Below 10% To Control Micro Creature Activity
Water Condensate: At 5 Degree Cecus Under Our 12 Year Research
More Safty: Total Enclosed Drying Condition
Footprint: Small Up To 5.5 M2 Per Ton Water Evaporation
Lower Investment: 3kwh Consumption For Needed 3L Water Evaporation
Stalbe: Operation
Free Maintenance: For 2 Years
Control: Fully Auto Control With No Operator
Energy Consumption: 1/3 Of Traditional Dryer
Structure: Steel Or RCC Or FRP
Product Description

 Continous Steam Sludge Drying Machine

Specification /Model LSD-4000 LSD-8000 LSD-12000 LSD-16000 LSD-20000 LSD-24000 LSD-28000 LSD-32000
Daily Sludge Disposal ( Ton) 4 8 12 16 20 24 28 32
Daily Water disposal ( L) 2,600 5,300 8,000 10,500 13,000 16,000 18,000 21,000
Water disposal per hour ( L) 108 220 333 437 541 666 750 875
Total Power Consumption ( kw ) 12 20 28 36 44 52 60 68
Steam Consumption / h (kg) 125 250 375 500 625 750 875 1000
Steam Pressure Required 3 kg/M3 ,132 ℃
Cooling Water Consumption / h (M3)) 8 16 24 32 40 48 56 64
Cooling water Temp. required 220/380/440/460 3ph , 50/60hz
Run Wind Flow Temperature Intake: 60-90 ℃ Reflux: 45-70 ℃
Control System Man-machine interface + PLC
Inlet Material Moisture 70%-85%
Outlet Dry Material Moisture 10%-50%
Wet Sludge Shaping Condition Extruced to be strip shape
Equipment Dimension (m) 4.5*2.5*2.84 9*2.5*2.84 13.5*2.5*2.84 18*2.5*2.84 22.5*2.5*2.84 27*2.5*2.84 31.5*2.5*2.84 36*2.5*2.84
Heat Rising Fan Dimension (m) 1.75*1*1 1.75*1*1 1.75*1*1 1.75*1*1 1.75*1*1 1.75*1*1 1.75*1*1 1.75*1*1
Cooling Fan Dimension (m) 2*1.5*1.5 2*1.5*1.5 2*1.5*1.5 2*1.5*1.5 2*1.5*1.5 2*1.5*1.5 2*1.5*1.5 2*1.5*1.5





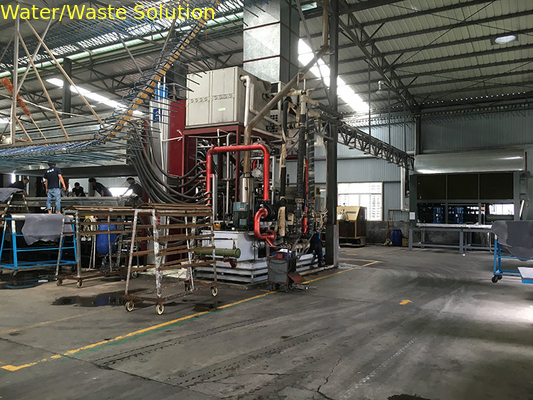

Continueous  Steam  sludge drying machine/High Quality Commercial And Industrial Types Used Stainless Steel Waste Sludge 0It can dry those sludge with 80% moisture through Plate frame press filter , Belt press filter and centrifugal decanter

into sludge with moisture 10% ,  it can thickened the sludge volume into 3/4 of the original one without needing extra

auxilary energy by only consuming the heat source under the total closed drying condition and its full auto control system

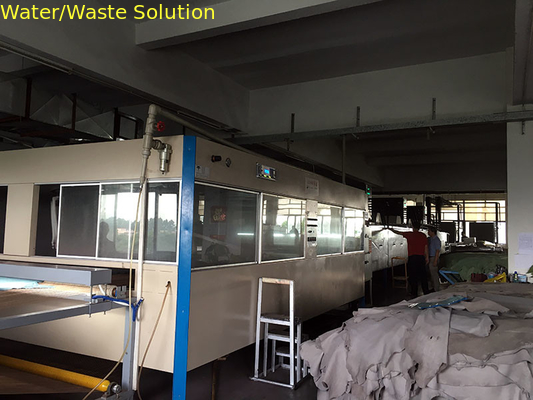

Continueous  Steam  sludge drying machine/High Quality Commercial And Industrial Types Used Stainless Steel Waste Sludge 1



Sludge Quality Under Diversified Water Moisture
Water Moisture (%) 99.9 98 90 85 80 70 60 50 40 30 20 10 5
Sludge Quality /T 200 10 2 1.33 1 0.67 0.5 0.4 0.33 0.29 0.25 0.22 0.21

we are the first global auto design , research and make  this kind of batch sludge dyrer manufacturer and leader due to our decade effort and concern on it .

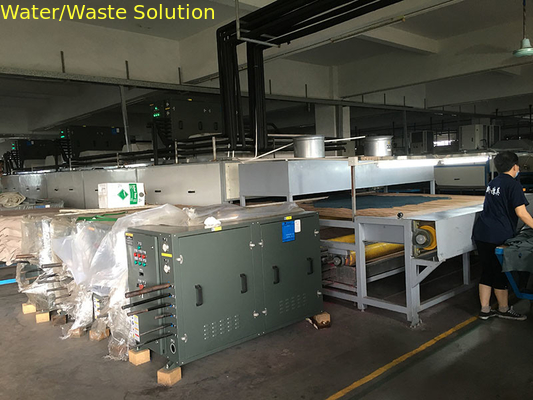

Continueous  Steam  sludge drying machine/High Quality Commercial And Industrial Types Used Stainless Steel Waste Sludge 2





♦ Sludge Process ♦

70~85% water content sludge is fed from the top of the indirect heating dryer.There are several layers of dryer.The function of scraping arms of each layer is moving sludge to next layer until dryer discharge port at lowest layer.There could ba a storage bag for temporary storage at discharge port or it is delivered to treated sludge storage tank.During sludge moving procedure,sludge is stirring by scraping arms.It is dramatically increased slidge drying efficiency by combined heat,mass transfer and stirring physical reactions.

Continueous  Steam  sludge drying machine/High Quality Commercial And Industrial Types Used Stainless Steel Waste Sludge 3



♦ Air Circulation Process ♦

Dry air is fed into the bottom of the dryer.It goes from the bottom layer to the discharge vent of upper layer of the dryer.When dry air passes through the sludge surface of each layer,the moisture inside sludge is quickly vaporized into air as humidity of air increased.The near saturated air from the discharge vent of dryer is boosted pressure by fan.The dehumidification function is occurred in condenser.The air will be dried again after leaving condenser.Due to reduce the dew point temperature,vapor molecules move together to form condensation droplets collected in condensate tank.Dry air could directly go to dryer or pass air heater before go to dryer due to different sludge characteristics.The air has been continuous circulating in the system.Since there is no exhaust released to environment during  process.It is not necessary to do oder or exhuast treatment.

Continueous  Steam  sludge drying machine/High Quality Commercial And Industrial Types Used Stainless Steel Waste Sludge 4

♦ Water Circulation Process ♦

lced water is pumped into condenser and taken out the heat of the air.It becomes the cold water after leaving condenser.The cold water is pumped through heat pump which adsorbed heat and make cold water to be iced water again.The iced water is circulating back to condenser.Hot water is pumped into the air heater and release heat to air before it is fed into dryer.After leaving air heater,hot water becomes warm water.The warm water is pumped through heat pump which release heat and make warm water to be hot water again.The hot water is circulating back to air heater.

Continueous  Steam  sludge drying machine/High Quality Commercial And Industrial Types Used Stainless Steel Waste Sludge 5

Characteristic of our  Low Temperature Batch Dryer

1. improve its dry sludge into 90% to withdraw the growth of the micro creature ( sludge heat value equal 3000Kcal /kg under 10% moisture )

2. The Water Steam will be consendated at 5 degree cecus .

3. Strenghten the drying system safety :

   Dust concentration <60 g/m3;  Grain Temp.<110  degree cecus;  oxegen Content <12%;  total drying system with no dust under air speed <2

   m/s;  the drying temp. control between 55 and 95 degree cecus;

4. With odorless smelling

5. small footprint

6. very easy and convenience on its operation and maintenance

7.Lower investment and Lower Maintenence charge

Continueous  Steam  sludge drying machine/High Quality Commercial And Industrial Types Used Stainless Steel Waste Sludge 6

Continueous  Steam  sludge drying machine/High Quality Commercial And Industrial Types Used Stainless Steel Waste Sludge 7
