sunny flower oil or milk stainless steel purifier

China sunny flower oil or milk stainless steel purifier supplier

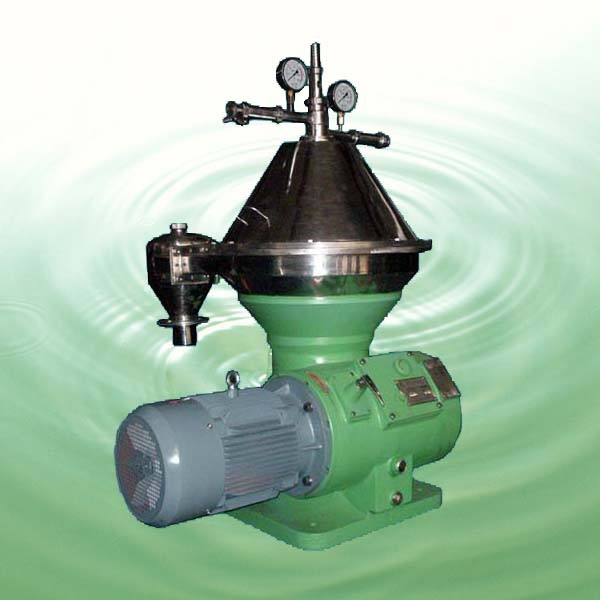

Large Image :  sunny flower oil or milk stainless steel purifier

Product Details:

Place of Origin: China
Brand Name: Loren
Certification: ISO9001:2008
Model Number: LI-OP-3CBM

Payment & Shipping Terms:

Minimum Order Quantity: 2 Sets
Packaging Details: standard export or as per buyer's demand
Delivery Time: Within 45 days for container order
Payment Terms: T/T; Paypal; L/C at sight, others
Supply Ability: 500 capacity per month
Separting Capacity: as per demand
Applicant: food oil or milk or other purifering machine
history: 8 year experience
Contact Now
Detailed Product Description


Loren Industry Co., Ltd

LIHDMP-50 milk separator detail information

sunny flower oil or milk stainless steel purifier

LIHDMP-50 separator is the most accurate special equipment, it comes out after our absorbing Westphalia and Miqika technology, it mainly separate fat from fresh milk and wipe out the non-conclusion and can be also applied in multiple  materials with little oil and water to purify them. The material-touched parts all use stainless steel material to meet sanitation demand.

It mainly composed by imported device, rotating drum, level and vertical bearings, body, Velocimetry, brake device and motors. It discharge material by Radial pump structure and can directly transform the down device ,The drum through a precise dynamic balance calibration, power Transmission used in the centrifugal friction clutch, helical gears to deliver big power, growth flat Stability and prevent overload, vibration, safe and reliable, simple, easy to use. Sweden SKF bearings are used with the brand, to ensure equipment operation accuracy. Electric machine can be configured PLC

Control system,.

After the turn at full speed, let operated water 7 run into the sealed cavity 6 to make the piston 4 rise and close the sludge mouth 3, and then put separable materials run into the disc separation zone of drum through the feed tube1. under centrifugal force filed, the impurity particles gather along the inner surface of the disc to the drum wall position, when gathering to a certain extent, allow operated water 7 into the opened cavity 5 to make piston 4 down and then open the slag mouth 3 to wipe out the unpurified materials. at the same time light liquid phase - oil gathering to drum central and discharge out by radial pump 8 next to the heart by the pump 8 and the heavy liquid phase - water channel from the upper disc gland run out of the body through upper radial pump 2 to complete circulation,

Main Technique Parameter

Drum DN

mm

475

Drum Speed

r/min

6000

Capacity

T/h

5000

Separated factor



9120

output way

Radial pump

Output Pressure

MPa

0.3

Slag outway

Manual or PLC auto

function

With CIP clean function

Separated Temp.

<120

Oil content

0.015~0.04%

Motor Power

KW

11

Outer dimension

L*W*H

1250*1100*1500

Weight

Kg

1100

Total weight

Kg

1220



sunny flower oil or milk stainless steel purifierSupply range with information: one separator with motor, one set special tool ,

One Packing list , one operation and use guide, one qualified certificate, one set E-control box

Leading Time:within 45 days.
