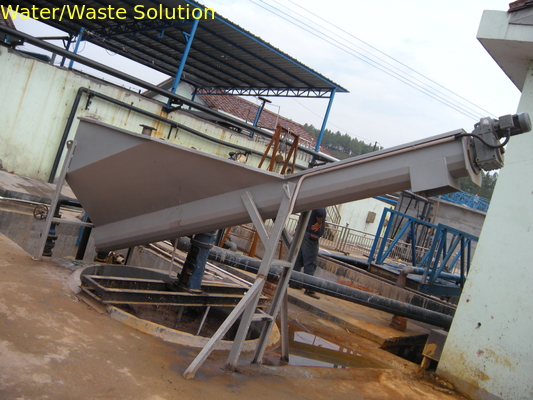

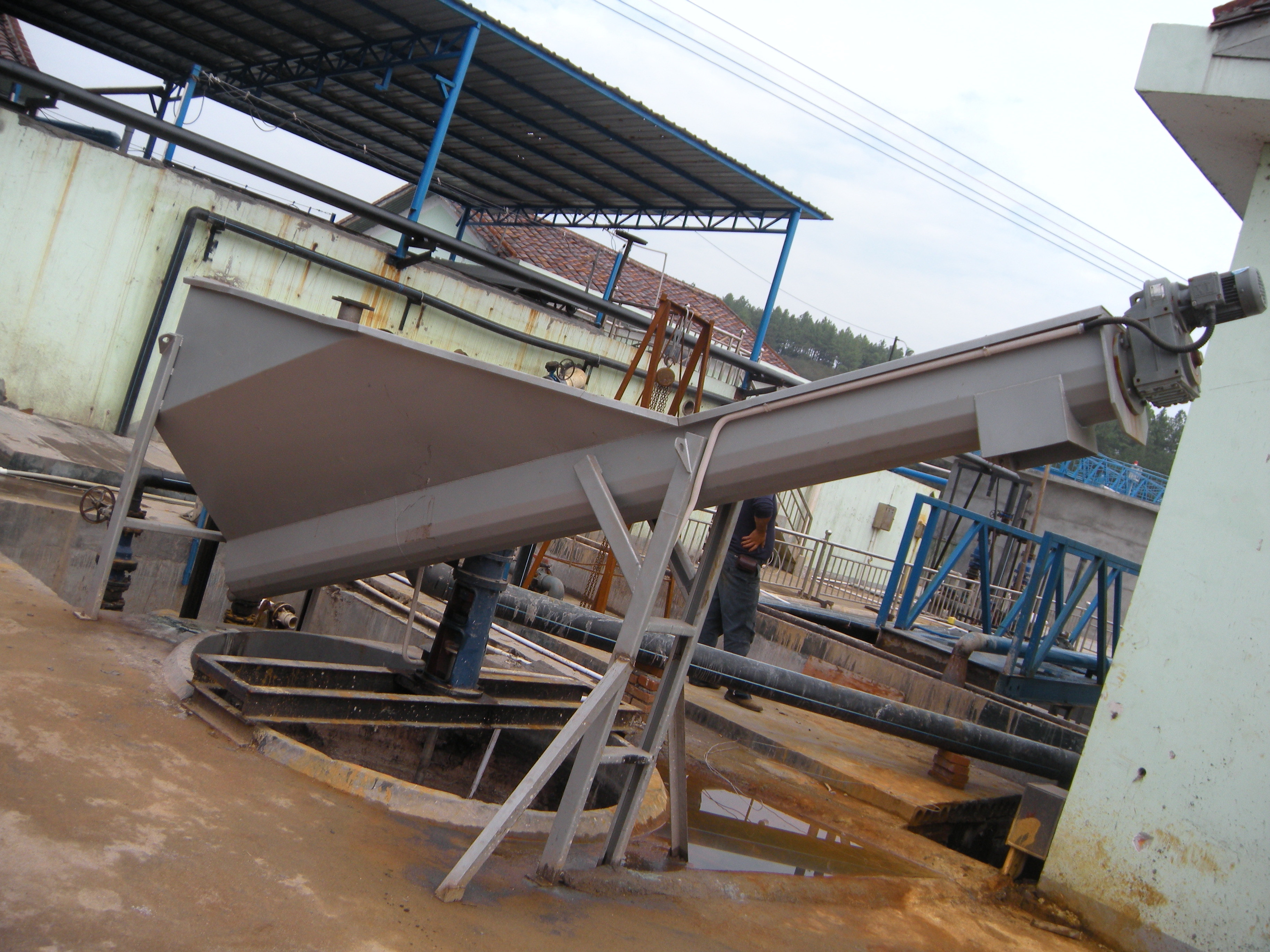

LSF type spiral sand water separator /Grit Separator
Description:
The baffle type V-shaped raft is outflow to ensure the minimum sand content in the effluent; no shaft spiral discharge to avoid clogging and overloading; U-type lining is made of high quality engineering plastics, good wear resistance
Product Details
The maximum processing capacity of a single unit is 126m3/h
Baffle V-shaped rafts outflow to ensure minimum sand content in the effluent
Shaftless spiral sanding to avoid blockage and overload
U-shaped liner is made of high quality engineering plastics with good wear resistance
Low speed operation, low energy consumption and low wear
Spiral material optional: high strength alloy steel, stainless steel SS304 or SS316L
Housing material optional: stainless steel SS304 or SS316L
Optional: pre-discharge cyclone separator
Main technical parameters of some specifications
L(mm) | 4350 | 4770 | 6350 | 6700 |
L1(mm) | 3840 | 4380 | 5890 | 6290 |
L2(mm) | 3000 | 4000 | ||
L3(mm) | 1000 | 1500 | 2000 | 2500 |
W(mm) | 1653 | 1748 | 1880 | 1920 |
H(mm) | 2100 | 2350 | 3050 | 3250 |
H1(mm) | 1670 | 1860 | 2480 | 2590 |
H2(mm) | 1600 | 1800 | 2250 | 2250 |
B(mm) | 1260 | 1340 | 1506 | 1800 |
A1(mm) | 2700 | 2800 | 3900 | 3800 |
A2(mm) | 150 | |||
Input DN (mm) | Φ100 | Φ150 | Φ200 | Φ200 |
Overflow DN(mm) | Φ150 | Φ200 | Φ250 | Φ250 |
