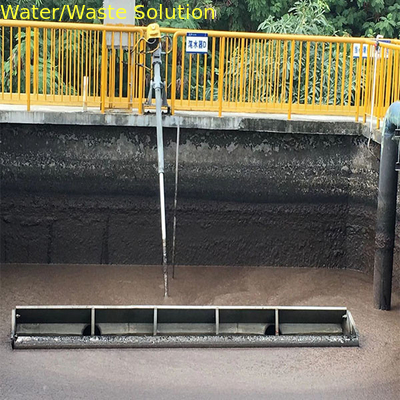

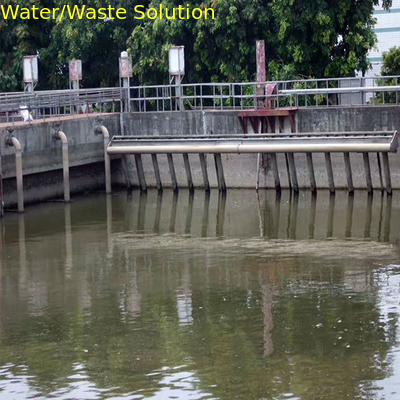

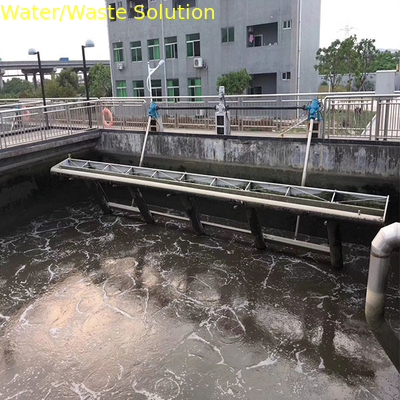

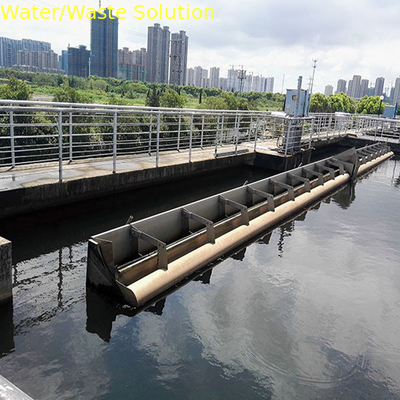

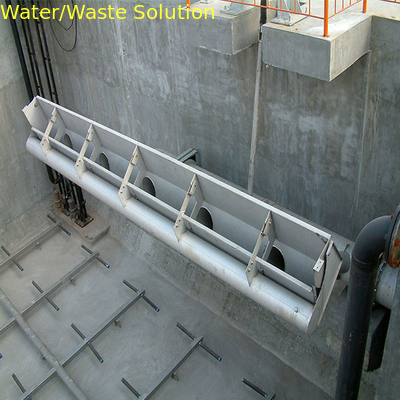

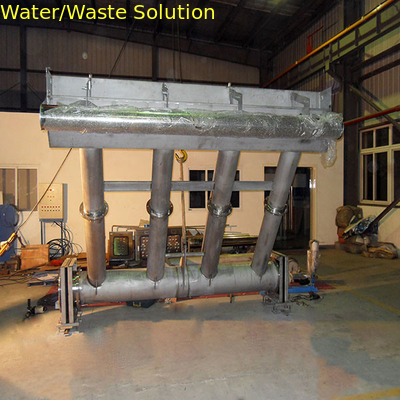

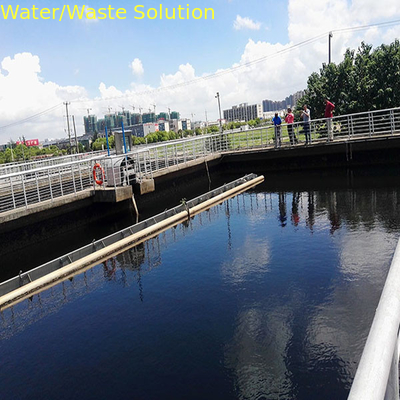

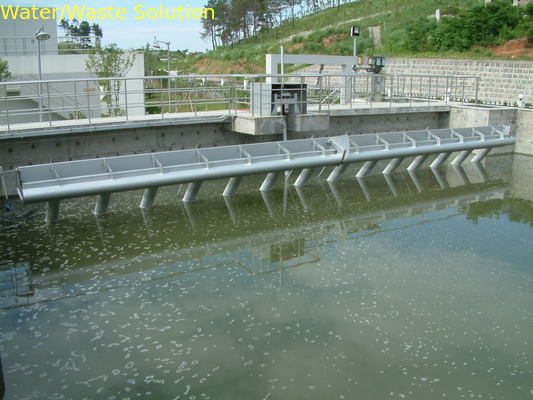

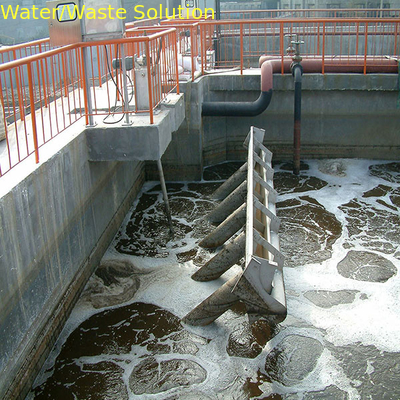

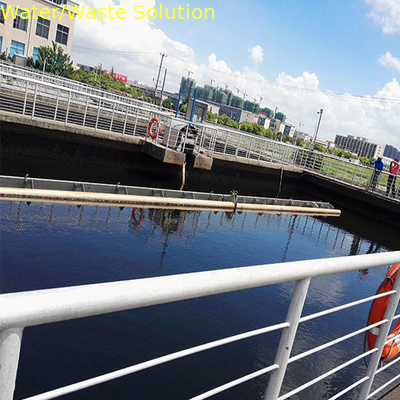

Automated Decanter Helps Sequence Batch Reactor Performance
Why us?
1. Factory Long History Directly Sales Cost and Fast Delivery
Feature and Performance
1. Decanter and Outlet Pipe connected Flexibly
Vertical Free Movement
Main Decanter Technical Parameter Data
Model | Flow(m³/h) | Decanter Depth (m) | Outlet Weir length(m) | Outlet Pipe DN (mm) | Drive Power (kw) |
LSD100 | 100 | 1~3 | 1 | 200 | 0.37 |
LSD200 | 200 | 1~3 | 2 | 300 | 0.37 |
LSD300 | 300 | 1~3 | 2.7 | 350 | 0.37 |
LSD400 | 400 | 1~3 | 3.5 | 400 | 0.37 |
LSD500 | 500 | 1~3 | 4.2 | 500 | 0.37 |
LSD600 | 600 | 1~3 | 5.2 | 500 | 0.55 |
LSD700 | 700 | 1~3 | 6 | 600 | 0.55 |
LSD800 | 800 | 1~3 | 7 | 600 | 0.55 |
LSD1000 | 1000 | 1~4.5 | 8.2 | 600 | 1.1 |
LSD1250 | 1250 | 1~4.5 | 10 | 700 | 1.1 |
LSD1500 | 1500 | 1~4.5 | 12 | 600*2 | 1.1 |
LSD1750 | 1750 | 1~4.5 | 14.5 | 600*2 | 1.1 |
LSD2000 | 2000 | 1~4.5 | 16 | 700*2 | 1.1 |
LSD2500 | 2500 | 1~4.5 | 20 | 700*2 | 1.1 |
LSD3000 | 3000 | 1~4.5 | 24 | 800*2 | 1.5 |
