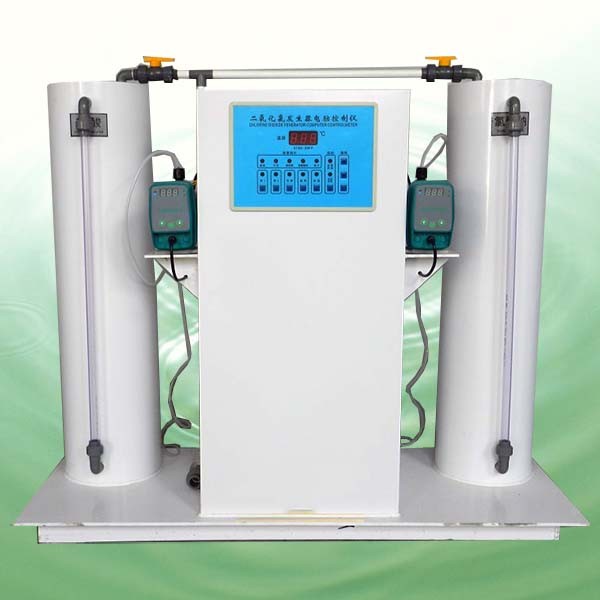

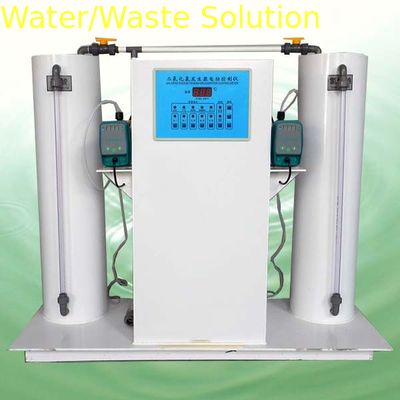

Industrial headwater chlorine dioxide generator,
Combination of Chlorine dioxide generator
Feeding system,action system,independent PLC control system,vacuum absorption system,automatic safety system,anti washing system,automatic residual liquid separation system.
Feature:
1. Adopt new type titanium base alloy material as reactor.This reactor has high intensity anti high temperature,anti-corrosion,10 years design service life.
2. Tianium alloy reactor can realize the most successful controlled temperature,feed stock conversion over 90%.
3. 5 stage reaction system may ensure enough time for raw material.Throught double temperature controlled technology low temperature section can be controlled during 30 to 400 degree.high temperature section from 68 to 710 degree.In the same time, It meet the requirements of CLO2 high recovery rate and final raw material high conversion rate.In the output gas,ClO2 quality is twice of CL gas.
4.Adopt mandatory for liquor recycling reflux ratio control technology,it makes action more complete,less material residues.
5.New type drying heat latest technology,small volume, temperature rises faster,more precise of temperature control,no heat preservation in standby,more eco friendly.
6.Adopt PLC,Touch screen for operation,4-20mA input port,online automatic control of CL residue and flow,Equipped with communication connection port,integrated data remote transport to upper machine.conform to various communication protocol,with remote monitor.function
7. Optional accessory: measure pump
8. Using condition and operation condition
A. place in house with good ventilate
B.power supply AC 220V 50HZ
|
Qualified |
1 grade |
Headwater |
CLO2/CL rate |
≥0.75 |
≥0.9 |
≥1.1 |
CLO2 rate |
≥50% |
≥60% |
≥80% |
Sodium chlorate consumption rate |
≤0.9 |
≤0.7 |
≤0.55 |
Type |
Efficient CL output |
Weight(Kg) |
Dimension L*B*H mm |
Pipe diameter mm |
Water pressure |
Power KW |
LI-2000 |
2000 |
110 |
650*500*1500 |
32 |
≥0.30 |
0.8 |
LI-3000 |
3000 |
135 |
700*600*1550 |
40 |
≥0.30 |
1.60 |
LI-5000 |
5000 |
182 |
800*650*1700 |
50 |
≥0.30 |
1.60 |
LI-7000 |
7000 |
190 |
900*650*1700 |
75 |
≥0.30 |
2.0 |
HT-10000 |
10000 |
210 |
900*700*1700 |
75 |
≥0.30 |
2.0 |
LI-20000 |
20000 |
225 |
950*750*1750 |
90 |
≥0.30 |
3.0 |
