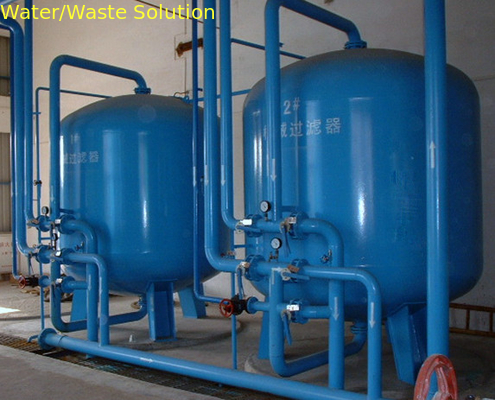

Multifunctional activated carbon or quart sand filter
1 Set
MOQ
Multifunctional activated carbon or quart sand  filter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Loren
Certification: ISO9001:2008
Model Number: MF1000/1500/2000
Payment & Shipping Terms
Packaging Details: standard export or as per buyer's demand
Delivery Time: Within 45 days for container order
Payment Terms: T/T; Paypal; L/C at sight, others
Supply Ability: 20 set per month
Specifications
Inlet Water Turbidity: ≤20mg/l
Outlet Water Turbidity: <3mg/L
Design Pressure: 0.75KW
Single Unit Water Flow Volume: 5m³~80m³/h
Filtering Speed: 8m~10m/h
Backwashing Intensity: 8~15L/m²•s
Specification Of The Filters: DN 800mm~3200mm
Cylinder Body Material: Carbon Steel Corrosion, Rubber Lined Steel,304SS, 316L S.S.
Applicant: Pre-treatment , RO, Sewage , Underground Or Surface Water Purifying
Product Description

Mechanical filters

Brief Introduction

Mechanical filter, also named as pressure filters, which is the important step

of pretreatment of pure water and other industrial sewage treatment system

with tank material can be CS. S.S with erosion-protection coatings inside and

outside.

It can be divided into Natural quartz sand filter, multi-media filters, activated

carbon filters, manganese sand filter etcs by media difference.

It can be divided into single flow or dual flow filter by water inlet stream way.

It can be single inlet nozzle use or connected use as per real working condition

Multifunctional activated carbon or quart sand  filter 0

Technical Specification

Inlet water turbidity:<20mg/L

Outlet water turbidity:<3mg/L

Design pressure:0.75MPa

Running pressure:0.25MPa~0.6MPa

Running Temperature:5°~40°(Special temp. can be tailored adjustable)

Single unit water flow volume:5m³~80m³/h

Control way:By hand or auto control

Filtering Speed:8m~10m/h

Backwashing intensity:8~15L/m²•s

Specification of the filters:DN 800mm~3200mm

Cylinder body material:Carbon steel corrosion, Rubber lined steel,304SS, 316L S.S.

Multifunctional activated carbon or quart sand  filter 1

Classification and Features

Single flow mechanical filter:

Its pipeline is simple with smooth operation, filter speed is around 8-10m/h as a circulated period.

Dual mechanical filter:

It has water inlet device on both top and bottom position with outlet device in the middle. The merit is: large amount of water filtration, strong decontamination ability, long-run period-usually 20 hours, the disadvantage is more complex piping system, running less stable, more difficult to wash and refueling.

Multifunctional activated carbon or quart sand  filter 2

Working principle

Under some pressure ,making raw water go through one or several filtering media to reduce the water turbidity and  to remove suspended solids, organic matter, colloidal particles, microorganisms, chlorine odor and some heavy metal ions, the media can generally be quartz sand, anthracite, activated carbon, porous ceramic particles, manganese sand etc, users can choose as per real condition to make water getting idea purification.



Applicant Range

It is widely applied in water treatment engineering , Mainly applied in  water pre-treatment of removing turbidity system, reverse osmosis system, and ion exchange softening desalination system, it can be also applied in grit removal of surface water and underground water with incoming water turbidity lower than 20 degree , outlet water turbidity can reach below 3 degree.

Multifunctional activated carbon or quart sand  filter 3

Function table

Item

Φ1000 single

flow filter

Φ1500 single flow filter

Φ2000 single flow filter

Unit

Output pressure

6.3~7.85

14.0~17.5

25.1~31.4

T/h

Working pressure

0.6

0.6

0.6

MPa

Run Temperature

5~30

5~30

5~30

C

Filter speed

8~10

8~10

8~10

m/h

Filter area

0.785

1.75

3.14

Media Grain DN

0.5~1

 (quartz sand)

0.8~1.5(Anthracite)

0.5~1    (quartz sand)

0.8~1.5(Anthracite)

0.5~1    (quartz sand)

0.8~1.5(Anthracite)

mm

Filter layer height

1200

1200

1200

mm

Filter DN

Φ1000

Φ1500

Φ2000

mm

Filter total height

3230

3750

4050

mm

Raw water inlet DN

65

100

125

mm

Purified water outlet DN

65

100

125

mm

Backwash inlet DN

65

100

125

mm

Backwash outlet DN

65

100

125

mm

Compressed inlet DN

40

50

65

mm

N.W.

650

1500

2500

kg

Feature

1. Lower cost with little running charge to facilitate management.

2. Filter Meida has long life by frequently backwashing.

3. Excellent filter efficiency with small footprint.

Multifunctional activated carbon or quart sand  filter 4

Model Selection criteria

Filter volume depends on water capacity , the material of filter also depends on applicant of different water quality and requirement , so does the filter media to find single layer, dual layer or multiple layer as per different demand.



Applicant range

Widely applied in

1.    Electrodialysis engineering in reducing SS. Grain impurities

2.    Brackish water desalination

3.    Space water production.

4.    Dinking water

5.    Groundwater fluoride

6.    Injection preparation in pharmaceutical industry

7.    water supply for fertilizers and machinery industry

Multifunctional activated carbon or quart sand  filter 5

Notice for daily operation

1.    Long time no running, once restart use, must make sure to clean filter media for around 5 minutes till output water clean

2.    First running or restart running after long time stop, must carry on air discharge to the system :open air discharge valve ,incoming water valve, and let water enter till no air in the water coming out from the air valve.

3.    For large filter, can clean it by air through compressed air ( with intensity around: 10~18L/m²•s) to strengthen backwash efficiency ,then carry on air and water backwash.

4.    Must control the backwash intensity to avoid activated carbon leakage out from the system.

5.    Must replace the activated carbon media regularly as per incoming water quality : generally speaking , change it once every 3 to 6 months.
