ASME/EN/GB/TS/GOST Standard Chemical Preparation & Dosing System
Definition
LPT-1000Type Flocculation and Polymer Dosing Tank Is a Kind Of Automatic Polymer Flocculation or Coagulation Preparation System with Its Main Material as Either Powder Or Liquid Chemicals,which Can Get Homogeneous and Activated Solution by Mixing The Compounds Continuously & Effectively
Applicant:
This Three-Chamber Automatic Chemical Flocculant Powder Dosing System Can Be Widely Applied In Various Industrial and Potable Water treatment field and Sludge reducing or Sludge DE-watering as well as solid management , chemical industry , mining tailing and pulp thickening etc
Model Technical Data
| Model | Capacity ( (L/h) |
Power (KW) |
Dimension (mm) |
Net Weight ( kg) |
HRT (H) |
| LPT200 | 200 | 0.54 | 940*470*1450 | 200 | 1.0-1.5 |
| LPT500 | 500 | 0.68 | 1400*800*1520 | 250 | 1.0-1.5 |
| LPT1000 | 1000 | 1.08 | 1800*1000*1620 | 350 | 1.0-1.5 |
| LPT1500 | 1500 | 1.78 | 2200*1100*1720 | 470 | 1.0-1.5 |
| LPT2000 | 2000 | 1.78 | 2400*1300*1840 | 550 | 1.0-1.5 |
| LPT2500 | 2500 | 2.48 | 2400*1300*2000 | 600 | 1.0-1.5 |
| LPT3000 | 3000 | 2.48 | 2400*1300*2200 | 630 | 1.0-1.5 |
| LPT4000 | 4000 | 3.35 | 2700*1600*2200 | 750 | 1.0-1.5 |
| LPT5000 | 5000 | 4.75 | 3300*1600*2200 | 900 | 1.0-1.5 |
| LPT6000 | 6000 | 4.75 | 3800*1600*2300 | 950 | 1.0-1.5 |
| LPT7000 | 7000 | 4.80 | 3100*1550*2600 | 1200 | 1.0-1.5 |
| LPT8000 | 8000 | 4.75 | 4500*1700*2350 | 1250 | 1.0-1.5 |
| LPT10000 | 10000 | 6.40 | 4000*2000*2650 | 1800 | 1.0-1.5 |

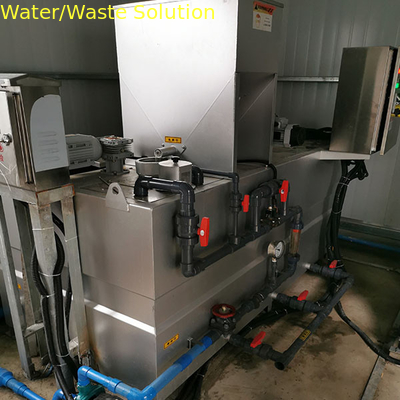

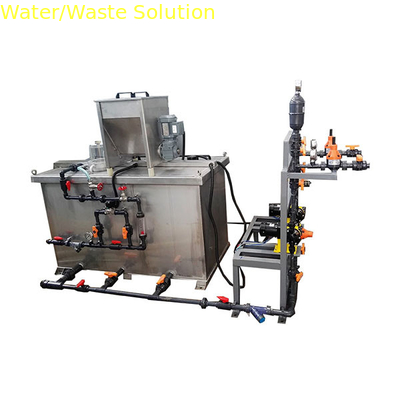

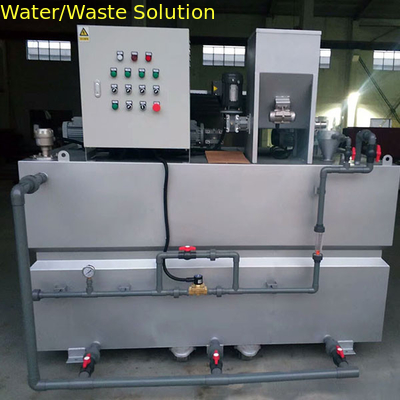

1. A three-chamber Integrated Tank

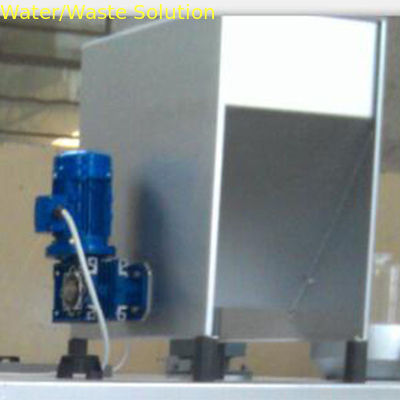

2.Screw Conveyor with a Hopper for Powdered Flocculant Dosing
3. Agitators – 2 pcs
4. Connecting Pipes With Automatically & Manually Operated Armatures
5. Water Level Sensors For Automatic Control
Working Principle
Dosing Screw Conveyor Is Driven By Electron Motor With a Gear Unit. The Rate Size Of Powdered Flocculant Is Controlled By Timing Control Of The Screw Operation.

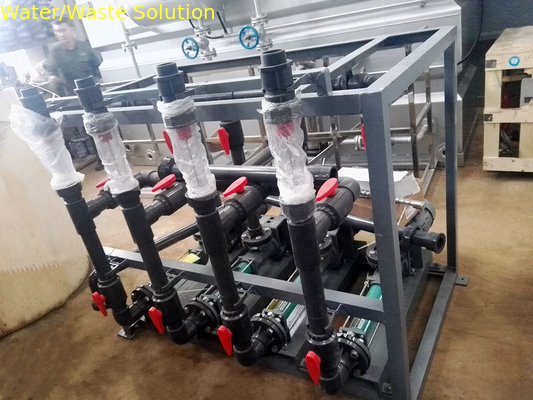

The System With The Flocculant Dosing Pump Can Be Delivered In Required Suitable Kind Of Material According To The Customer’s Requests.
(1) Q: How to select the suitable model and dosing system ?
A: You can provide us your water source, water quality, flow rate and ground area, chemical type and working condition etc
(2) Q: Payment ?
A: We can accept TT, L/C,West union or Discussed .
(3) Q:Delivery Date?
A: It depends on the order quantities and chemical dosing system size. Generally, the delivery time will be within 60 days.
(4) Q:Package?
A: Normally, we will adopt standard package. If the clients have the special requirements for package, we will charge the extra packaging fees.
(5) Q: How to install the dosing system after the unit arriving the destination?
A: Follow Our Provided Detailed Operation Manual. If Necessary, we can send technicians on-site service under condition that the visa fee, air tickets, accommodation, wages will be paid by end user or buyer
