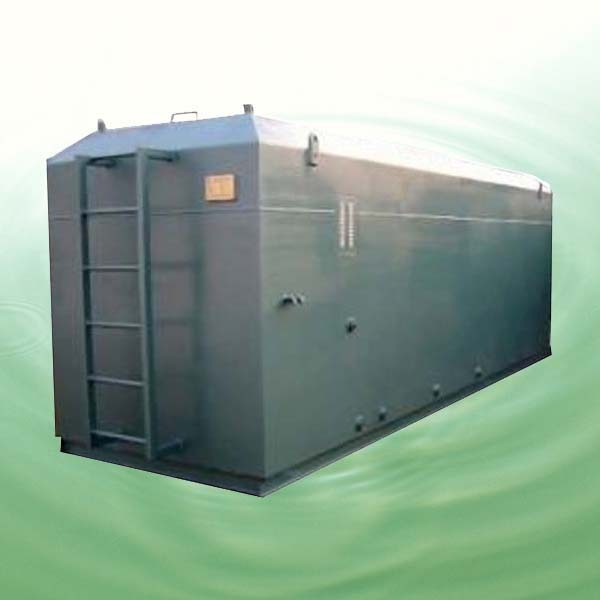

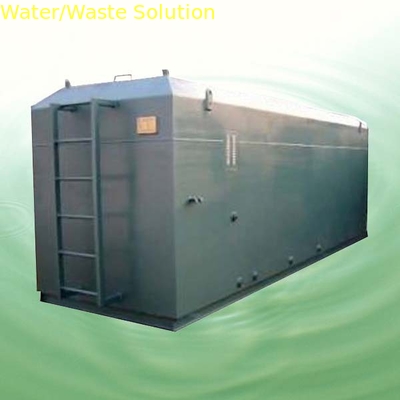

We can tailered making every Container way integration sewage treatment plant ( A/O) , MBR, MBBR Reactor as per your diversified demand , as long as water quality analysis provided
here is one example of MBR:
60 M3/D MBR WWTP
|
S.N. |
ARTICLE |
Model |
Quantity |
Material |
|
1 |
Lift pump |
WQ10-8-0.75 |
2 pcs |
The main body uses sheet coated carbon steel 6mm thick or SS304 standard leavesd |
|
2 |
Blowers |
WSR65 |
2 sets |
|
|
3 |
Sludge pumps |
WQ10-8-0.75 |
1 pc |
|
|
4 |
Armoire Auto |
GYZK-60 |
1 set |
|
|
5 |
Outline Dimension 7M*2M*2.5M |
GYMBR-60 |
1 set |
|
|
6 |
MBRMembrane |
PP |
60 pcs |
|
|
7 |
Suction pumps |
WB100-200 |
2 pcs |
|
|
8 |
Aerators |
K215 |
36 sets |
|
|
9 |
Combined packing |
50-100 |
20 cubic |
|
|
10 |
Support filling |
|
1 set |
|
|
11 |
Liquid float balls |
UQK-02 |
2 pcs |
|
|
12 |
Anti-corrosion materials |
Epoxy Asphalt |
1 set |
|
|
13 |
Backwash pumps |
WQ10-10-0.75 |
1 pc |
|
|
14 |
Mixture reflux pump |
WQ10-10-0.75 |
1 pc |
|
|
15 |
Pipeline valves |
|
1 set |
