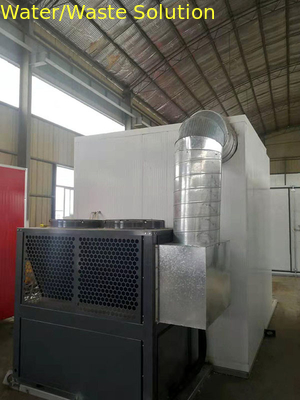

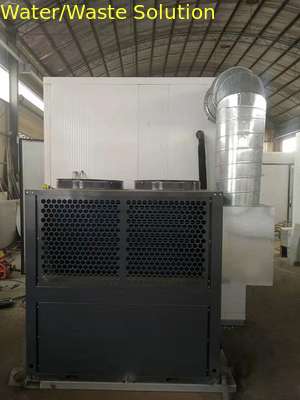

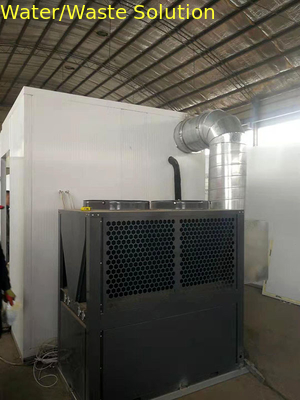

15HP Open Loop Exhausted Heat Recovery Advection Drying Tunnel for food , vegetable and fruit , flower etc
Feature: Wet Material Entry Its Front End, and Dry Material Output From its Another End
Configuration:
1. Configure One 15HP Heat Pump
2. Adopts 4 sets 2.2kw Circulating Fans (Advection Top Return)
3. Adopts One control box;
4. Drying Chamber Dimension(L*W*H): 8500*2100*2500mm;
(Net Length 7500mm)
5. One Polyurethane Drying Box with Its Front Door for Wet Material Entry and Opposite Door for Dry Material Delivery Out.
6. Configure Dimension: 1200*900*2000mm Trolleys with total 12 vehicles of each donates 36 trays;
7. Total 432 pcs Trays whose dimension: 800*600mm
Working Principal
It really realize automatic constant temperature, automatic moisture discharge, low investment, low energy consumption, high drying efficiency, fast speed and large output. It is widely used for drying fruits, vegetables, and Chinese medicinal materials such as wolfberry, salvia, kelp, mint, radish sticks, jujube, pepper, rose, bean, lily, and candied fruit, etc. .
It adopts continuous drying operation, which mainly consists of a drying room, a drying car, a tray, an air supply system, a hot air stove, and an automatic electrical control system. The drying room adopts metal insulation board or brick-concrete structure, and the drying tray is made of metal or other materials.
When the dryer is working, the materials to be dried are placed in a drying tray, and the drying tray is placed on a drying cart. The drying cart enters from the entrance of the drying chamber at the same time. At the same time, the hot air is discharged from the drying chamber by the air supply system. It is fed in at the end and runs in reverse with the drying truck to make full contact with the material. Automatic temperature control in the drying room, moisture is automatically removed by the exhaust fan
We Also Provide Multiple Screw Maintenance Service, Spiral Exhance , Working Ring Exchange , Shaft Maintenance
as well as Supporting Parts Service and Suppling
