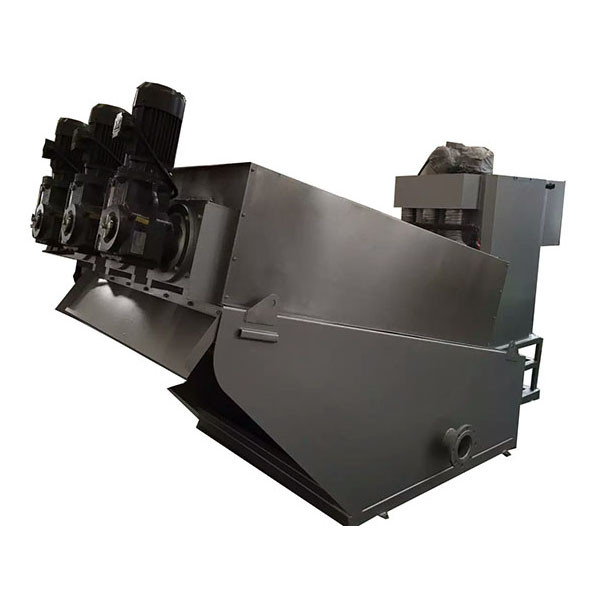

High Level Tough Multi-pal screw press dewatering machine
1 set
High Level Tough Multi-pal 	screw press dewatering machine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Loren
Certification: ISO9001:2008
Model Number: DL-051/101/131/132/201/202/301/302/301/351/352/404
Payment & Shipping Terms
Packaging Details: Standard Wooden Box or Naked package with bubble poly
Delivery Time: within 20 days for 40GP order
Payment Terms: 50%T/T in advance , balance before delivery
Supply Ability: 50 set per month
Material: Stainless Steel
Capacity: 1.5-600 Kg/h Dry Sludge
High Efficiency: Suitable For High Consistency Sludge

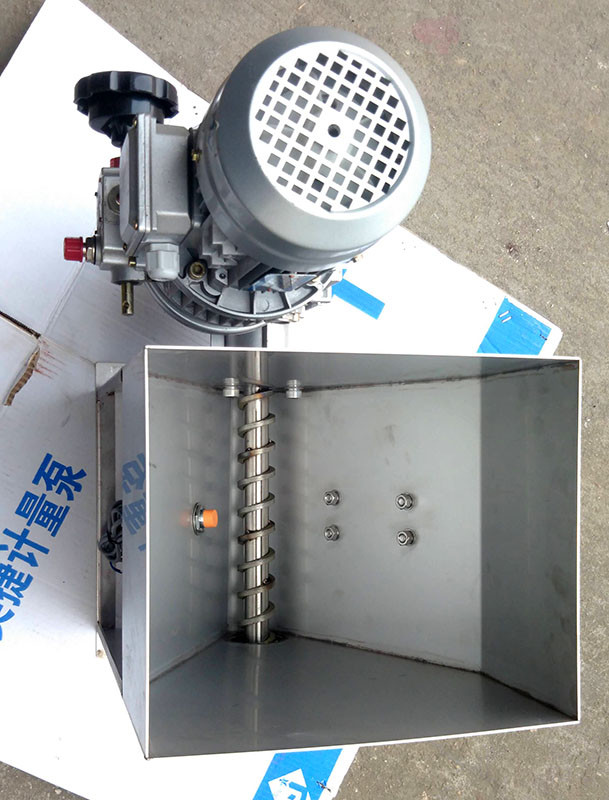

Configration: Screw Disc , Agitator , Solenoid Valve , Reducer Etc
Duty: Continuously Auto Running
Guarantee: 1 Year

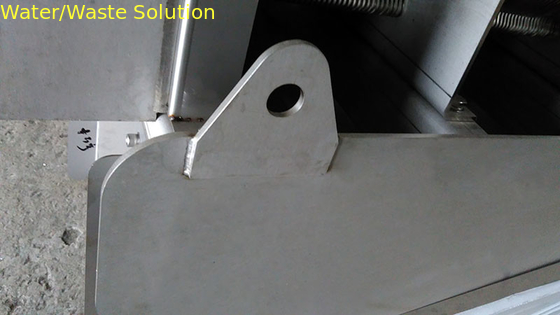

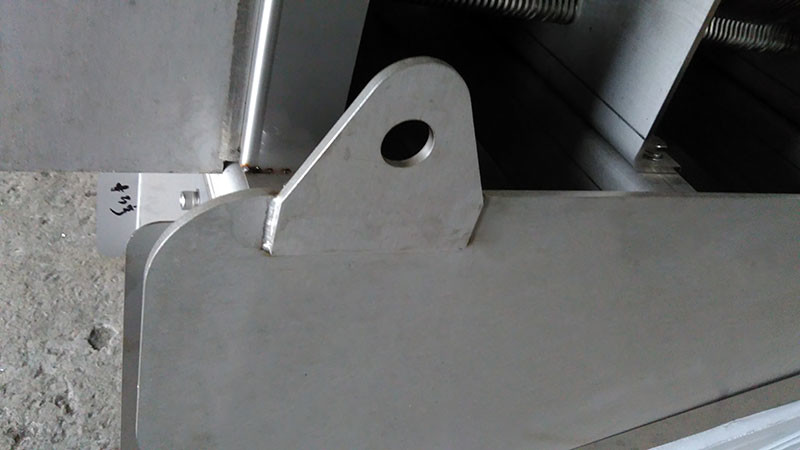

Body Connection: Hinge Style Design
OEM: Provided
Product Description

High Level Tough Multi-pal 	screw press dewatering machine 0




Model DS Capacity Sludge Capacity touch what's app /wechat:+ 86-13921106199
Low Density→ High Density 2000mg/L 5000mg/L 10000mg/L 20000mg/L 25000mg/L 50000mg/L
101 ~3kg/h ~5kg/h ~1.5m3/h ~0.6m3/h ~0.5m3/h ~0.25m3/h ~0.2m3/h ~0.1m3/h
131 ~6kg/h ~10kg/h ~3m3/h ~1.2m3/h ~1m3/h ~0.5m3/h ~0.4m3/h ~0.2m3/h
132 ~12kg/h ~20kg/h ~6m3/h ~2.4m3/h ~2m3/h ~1m3/h ~0.8m3/h ~0.4m3/h
202 ~18kg/h ~30kg/h ~9m3/h ~3.6m3/h ~3m3/h ~1.5m3/h ~1.2m3/h ~0.6m3/h
301 ~30kg/h ~50kg/h ~15m3/h ~6m3/h ~5m3/h ~2.5m3/h ~2m3/h ~1m3/h
302 ~60kg/h ~100kg/h ~30m3/h ~12m3/h ~10m3/h ~5m3/h ~4m3/h ~2m3/h
303 ~90kg/h ~150kg/h ~45m3/h ~18m3/h ~15m3/h ~7.5m3/h ~6m3/h ~3m3/h
352 ~120kg/h ~200kg/h ~60m3/h ~24m3/h ~20m3/h ~10m3/h ~8m3/h ~4m3/h
353 ~180kg/h ~300kg/h ~90m3/h ~36m3/h ~30m3/h ~15m3/h ~12m3/h ~6m3/h



The abbreviation of stacking screw machine is a kind of water treatment system for municipal wastewater treatment engineering and petrochemical, light industry, chemical fiber, paper, pharmaceutical, leather and other industrial industries. The actual operation proves that the stacked screw sludge dewatering can create considerable economic and social benefits for customers.

Construction principle

1. The main body of the dewatering machine is a filter device formed by a fixed ring and a swimming ring stacked on each other, and a screw shaft is formed therein. The front part is a concentrated part, and the rear part is a dewatering part.

2. The filter joint formed between the fixed ring and the swimming ring and the pitch of the screw shaft gradually become smaller from the enrichment portion to the dehydration portion.

3. The rotation of the screw shaft promotes the transport of the sludge from the enrichment section to the dewatering section, and also continuously drives the swimming ring to clean the filter joint to prevent clogging.


Principle of dehydration

1. Concentration: When the screw pushes the shaft to rotate, the multiple solid laminates located on the periphery of the push shaft move relative to each other. Under the action of gravity, water is filtered out from the relatively moving lamination gap to achieve rapid concentration.

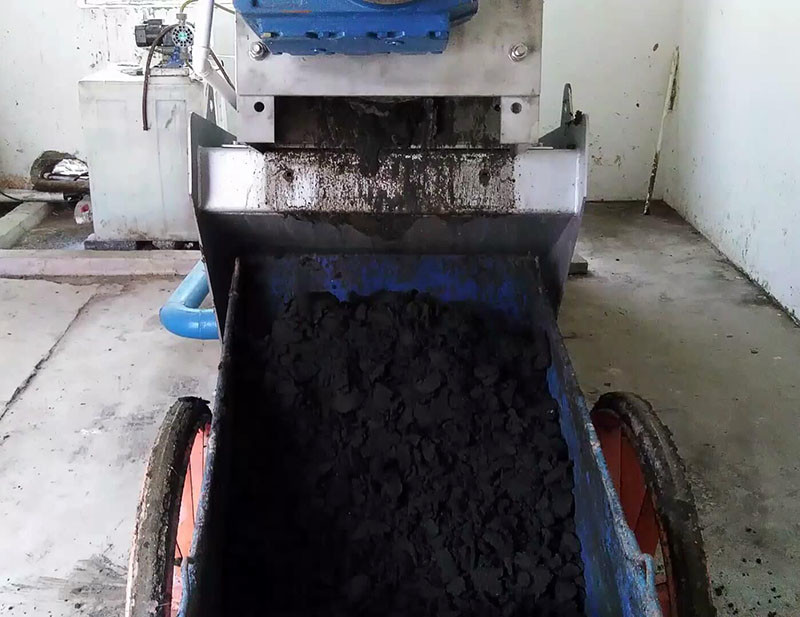

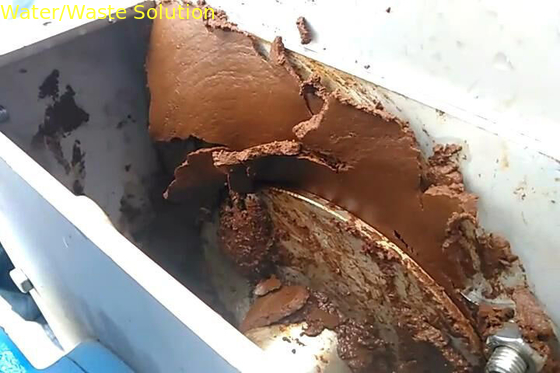

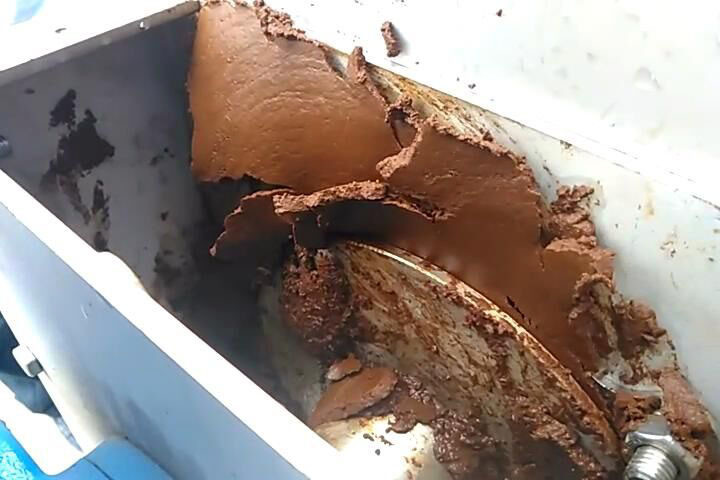

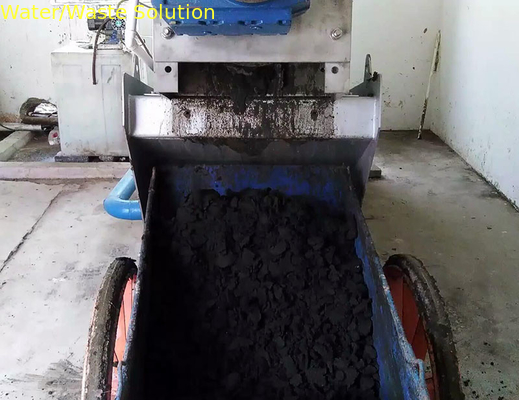

2. Dehydration: The concentrated sludge moves forward with the rotation of the screw shaft; along the exit direction of the mud cake, the pitch of the screw shaft gradually becomes smaller, and the gap between the ring and the ring gradually becomes smaller, and the volume of the spiral cavity becomes smaller. Continuous shrinkage; under the action of the back-pressure plate at the outlet, the internal pressure is gradually enhanced. Under the continuous driving of the spiral push shaft, the water in the sludge is squeezed out, and the solid content of the filter cake is continuously increased, and finally the sludge is realized. Continuous dehydration.

3. Self-cleaning: The rotation of the screw shaft pushes the swimming ring to rotate continuously. The device relies on the movement between the fixed ring and the swimming ring to realize a continuous self-cleaning process, thereby cleverly avoiding the clogging problem that is common in the traditional dewatering machine.
