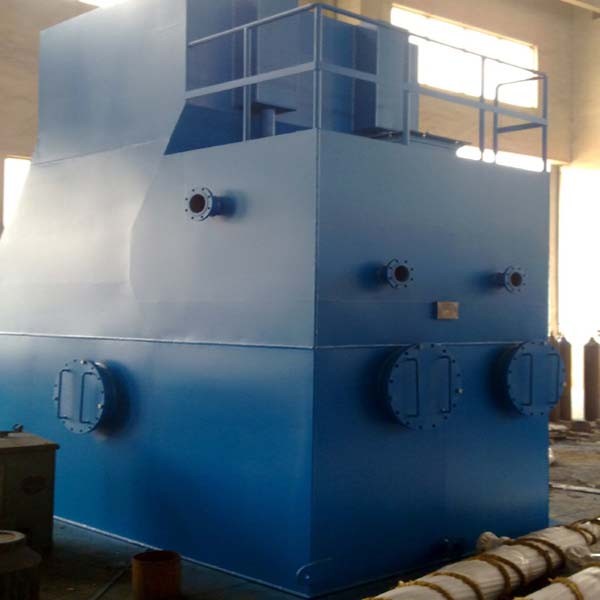

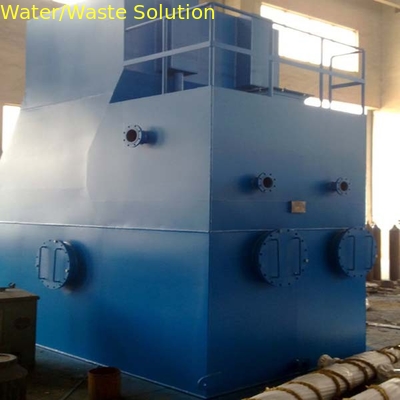

FA-efficiency automatic water purifier
◆Brief introduction
It is our new developed products with water purifying capacity: 10／30／50／100／200 cubic meter per hour , other special demand, we can design for it .
This water purifier integrates crafts of flocculation, sedimentation, sewage, recoil or backwash, catchment filter without operation by hand which is the most important unit of waterworks automation, this machine together with our matching auto dosing and disinfection equipment can be a full set of water purifying station.
The purifier has a wide applicant with excellent clean water output, small footprint and electricity consumption to replace auxiliary pumps and other necessary facility to greatly reduce the cost
◆Applicant range:
1. As main water purifying unit of waterworks from village, countryside, town, county, city and industrial and mining enterprise based on river, lake, water reservoir with the water turbidity lover than F3000mg/L.
2. Have special function for low temp. Low turbidity, seasonal algae water resource purification
3. Idea pretreatment equipment for high concentration water, beverage industrial water, boiler water treatment.
4. Applied in a variety of industrial circulated water system to effectively and greatly improve its water quality.
5. Applied in intermediate water system as water purifier as recycled use as output water from sewage water treatment plant.
◆Outstanding Characteristics
1. Except managing main pump station house and auto dosing system, others all can be handled by this water purifying device , the operator only need supervise the water quality regularly .
2. High density flocculation layer can make impurities in raw water impacting fully with high absorption ratio to fit for a variety of water temperature and turbidity, thus to improve the impurity grains removal rate and it has also algae removal function under some condition.
3. Fast sludge thickener house and adjustable auto sludge discharge system can make sludge easily and fast removal timely to safeguard stable impurities grain removal ratio.
4. High efficient flocculation and sedimentation make settled water in good quality. 5. New and unique created catchment system with lower and small DN nozzle to make water distribution more average to improve the volume utilization factor and greatly save electricity.
6. Automatic purifying system not only safeguards its high filtration (when raw water turbidity lower than F3000mg/L, the turbidity after filtering can hold on below 3mg/L) but also carries on auto backwashing ( no need special added backwash water pump or compactor likewise ) to save large investment and other daily running , maintenance charges.
7. Lower than 5% auto water consumption rate to save water resource.
8. Small footprint with around 4.1m Height to save 50% compared to other water purification system , it can be mounted both indoor and outdoor.
9. Facilitate for expanded construction, reconstruction, recycle use , and movable applicant .
◆Design Parameter
|
Raw water turbidity |
≤3000mg/l |
|
Raw water temperature |
Normal temperature |
|
Clean water turbidity |
≤3mg/l |
|
Surface load on settlement area |
7-8m3/h·m2 |
|
Design filtering speed |
8-10m/h |
|
Washing toughness of filtering tank |
14-16 l/m2·s |
|
Washing Toughness |
t=4-6min(adjustable ) |
|
Total hold time |
T=40-45min |
|
Water inlet pressure |
≥0.06Mpa |
|
Filter Media |
1.Gravel cushion,Grain DN2-4mmthick:100mm 2.Quartz sand,grain DN 0.5-2mm,thick 600mm |
◆Data table for pipe, power supply and pumps
|
Model |
FA-10 |
FA-30 |
FA-50 |
FA-100 |
FA-200 |
FA-300 |
|
Capacity (t/h) |
10 |
30 |
50 |
100 |
200 |
300 |
|
Inlet(mm) |
DN80 |
DN100 |
DN100 |
DN150 |
DN200 |
DN250 |
|
Outlet(mm) |
DN100 |
DN150 |
DN150 |
DN200 |
DN300 |
DN350 |
|
Drain(mm) |
DN300 |
DN450 |
DN450 |
DN600 |
DN600 |
DN700 |
|
Sludge(mm) |
DN300 |
DN300 |
DN300 |
DN300 |
DN350 |
DN400 |
|
Pressure(mm) |
DN40 |
DN40 |
DN40 |
DN50 |
DN50 |
DN50 |
|
Main pump model |
IS50-32 |
IS80-65 |
IS80-65 |
IS150-125 |
IS150-125 |
IS200-150 |
|
Pump power(kw) |
1.10 |
4.00 |
4.00 |
7.50 |
11.00 |
15.00 |
|
N.W.(t) |
7.5 |
12 |
22 |
42 |
73 |
108 |
|
Running W.(t) |
24 |
49 |
83 |
165 |
315 |
468 |
◆FA auto water purifier Dimension table
|
Model |
FA-10 |
FA-30 |
FA-50 |
FA-100 |
FA-200 |
FA-300 |
|
L |
2100 |
3000 |
4000 |
6800 |
13600 |
20400 |
|
B |
1700 |
3100 |
3850 |
4600 |
4600 |
4600 |
|
b1 |
500 |
500 |
500 |
500 |
500 |
500 |
|
b2 |
1750 |
1750 |
1750 |
1750 |
1750 |
1750 |
|
H |
4350 |
4350 |
4350 |
4350 |
4350 |
4400 |
|
h1 |
250 |
250 |
250 |
250 |
250 |
250 |
|
h2 |
1250 |
1250 |
1250 |
1250 |
1250 |
1250 |
|
h3 |
2100 |
2100 |
2100 |
2100 |
2100 |
2100 |
|
h4 |
800 |
800 |
800 |
800 |
800 |
800 |
|
h5 |
1200 |
1200 |
1200 |
1200 |
1200 |
1200 |
|
h6 |
500 |
500 |
600 |
600 |
800 |
900 |
|
a |
300 |
400 |
400 |
500 |
600 |
700 |
Comment:
1. All dimensions are based on mm.
2. The above size is our normal size, if special size, we can make as per special demand.
3. This device not includes other auxiliary pipes, valves, walkways, and platform.
4. Provide technique consultancy and bear water project engineering design
5. if needed onsite commissioning , the charge will be another charged
◆Installation and maintenance
1. It is a whole unit which can be directly used after connecting inlet and outlet tube
2. The inlet tube must configured one volume gauge.
3．The power supply is: 380V, 3 phases, auto control, if different, please specify when ordering
4. The unit normally doesn’t need maintenance, just check filter media each year, If thickness is not enough, can use DN 0.5-1.2mm Quartz sand to reach needed height.
