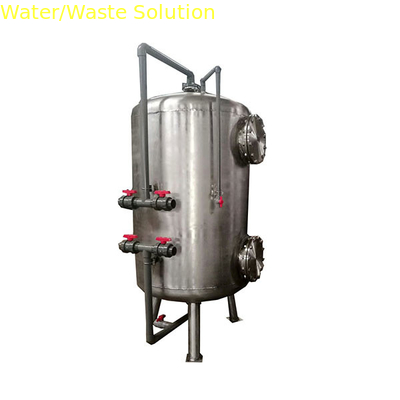

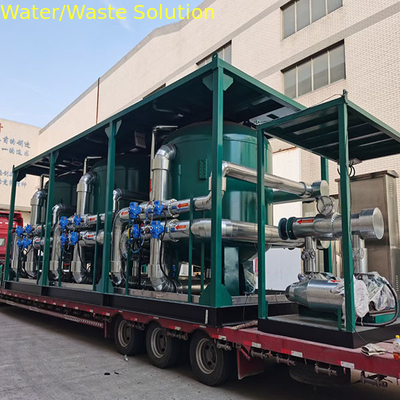

Factory Sell Maintenance-free LFF-8 High Efficiency Fiber Ball Filter
1 Set
Factory Sell Maintenance-free LFF-8 High Efficiency Fiber Ball Filter
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Loren
Certification: ISO9001:2008
Model Number: LFF-8
Payment & Shipping Terms
Packaging Details: standard export or as per buyer's demand
Delivery Time: Within 45 days for container order
Payment Terms: T/T; Paypal; L/C at sight, others
Supply Ability: 20 set per month
Rated Clean Water Capacity: 8-210 Cubic Meter Per Hour
Input SS: ≤20-100mg/l
Oupput SS: 1-5 M3/h•m2
Design Filtering Speed: 20-50m/h
Washing Toughness Of Filtering Tank: 0.6-3l/m2•s
Washing Toughness: T=10-20min(adjustable )
Running Temp.: 10- 50℃
Running Pressure: Lower Than 0.6 MPa
Product Description

Automated Mechanical Filter Helps Water Purifier Performance


Why us?

1. Factory Long History Directly Sales Cost and Fast Delivery

  • Fully Combined Sewage Treatment Solution Design And Fabrication
  • Fully Automatic System with Long Life Work Protection
  • High Efficiency Fiber filters With Little Room and Run Cost
  • Within 8 Hours Response Service and After Sales Service


Feature and Performance

  • Simple Structure With Easy Operation
  • Over 90% High TSS includes Some Bacteria, Virus, Macro-molecular

Organic Matter

  • 3-5 times higher Filtering Speed than traditional one , can reach 50m/h
  • 2-4 Times Sewage Interception Capacity Compared To Traditional One
  • 1/5-1/3 Room of Traditional Filter to save cost
  • 1/2-12/3 Ton Water Production Cost compared to that of Traditional Filter
  • 1-3% of Produced Fresh Water Consumption for Backwash
  • No need change filter Media by auto flushing


Applicant of The Fiber Ball Filter

1. Industrial Water Feeding System

2. Circulating Cooling Water Side Filter

3. Heating Network With Water Filtration

4.High Purity Water Preparation

5. Industrial Sewage Advanced Treatment System

6. Removal of Iron And Manganese From Groundwater

7. Drinking water

8.Bath Water Circulation Treatment etc


Fiber Ball Packing Data

Fiber DN



Fiber Ball DN Void Ratio Specific Surface Area Filtration Rate Mud Hold Packing Density



15-20 mm 30-60 mm 96%


















Fiber Bundle Mechanical Filter Parameter

SN. Model Filter DN (mm) Filter Layer Thick



Max.Run Pressure Filter Speed Backwash Strength
1 LFF-8 600 1000 8 0.6MPa 25-50 m/h




2 LFF-15 800 1000 15 0.6MPa 25-50 m/h
3 LFF-25 1000 1000 24 0.6MPa 25-50 m/h
4 LFF-35 1200 1200 33 0.6MPa 25-50 m/h
5 LFF-45 1400 1200 46 0.6MPa 25-50 m/h
6 LFF-55 1500 1400 53 0.6MPa 25-50 m/h
7 LFF-60 1600 1400 60 0.6MPa 25-50 m/h
8 LFF-95 1800 1400 94 0.6MPa 25-50 m/h
9 LFF-150 2000 1400 147 0.6MPa 25-50 m/h
10 LFF-210 2400 1500 210 0.6MPa 25-50 m/h



  • The Filter Speed Normally 30m/h for SS Removal and 20m/h for Iron and manganese
  • Diameter Over 1000mm Filter Can Configure Agitator for Good Back washing Fiber media
  • If Need configuring Valve or Other Special Demand , Please Specify When Inquiry
  • If Adopting Roots Fan as Air Source , Please Inform us before OrderiFactory Sell Maintenance-free LFF-8 High Efficiency Fiber Ball Filter 0
