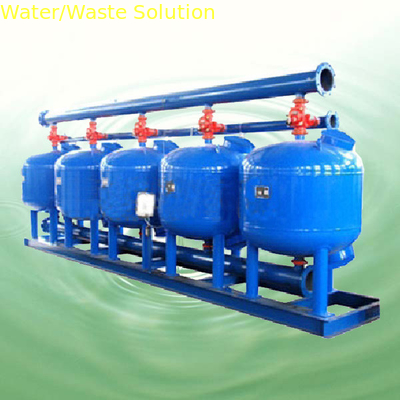

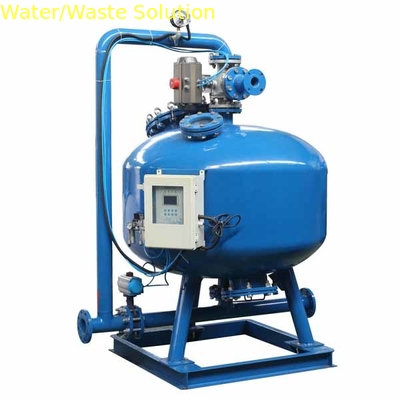

Factory Sell Maintenance-free LSSF-5 Shallow Activated Quartz Sand Filter
1 Set
Factory Sell Maintenance-free LSSF-5 Shallow Activated Quartz Sand Filter
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Loren
Certification: ISO9001:2008
Model Number: LSSF-5
Payment & Shipping Terms
Packaging Details: standard export or as per buyer's demand
Delivery Time: Within 45 days for container order
Payment Terms: T/T; Paypal; L/C at sight, others
Supply Ability: 20 set per month
Specification: φ1200×1900mm
Input Water Quality: SS≤50mg/L
Output Water Quality: SS≤5mg/L
Media Layer Height: 400m
Filtering Speed: 35-45/h
Quartz Sand Grain DN: 1.0-2.0mm
Flange Pressure Standard: 1.0 Mpa
Cylinder Body Material: Carbon Steel Corrosion, Rubber Lined Steel,304SS, 316L S.S.
Applicant: Industrial Water , Circulated Water , Raw Water And Other Waste Water Filtering System
Product Description

Automated Mechanical Filter Helps Water Purifier Performance

Why us?

  • Factory Long History Directly Sales Cost and Fast Delivery
  • Fully Combined Sewage Treatment Solution Design And Fabrication
  • Fully Automatic System with Long Life Work Protection
  • Continuous Hign Speed Filtration Function
  • Within 8 Hours Response Service and After Sales Service

Factory Sell Maintenance-free LSSF-5 Shallow Activated Quartz Sand Filter 0

Feature and Performance

  • Compact Structure With Small Volume And Footprint
  • Flexible Mounting(Horizontal Or Vertical, Indoor Or Outdoor )to Save Room.
  • With Good Corrosion-Proof Performance and Long Life.
  • With large filter volume: can be boosted from 30m3/h into 2500 m3/h
  • with Large Filter Speed : 40-60m/h As Per Water Quality.
  • with Impurities Removal Below 0.10mm / Output Turbidity Below 0.5NTU.
  • Automatic Intelligent Backwash for 2-3min under flow lower 3m3 without pump
  • Constant Water Supply

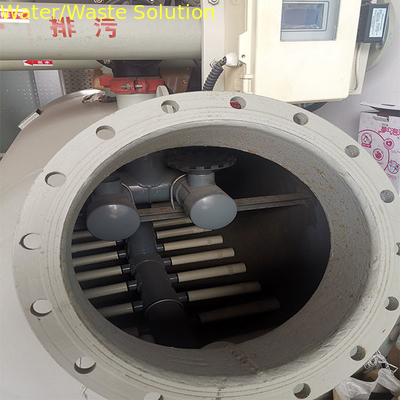

  • Special Water Distribution Makes Whole System As Layer Flow And Stable Running
  • Select Refined Quartz Sand Or Garnet Select,Min Media Diameter Can Be 0.16mm
  • Lower long term run cost and Maintenance Charge

Factory Sell Maintenance-free LSSF-5 Shallow Activated Quartz Sand Filter 1

Media And Volume

LSSF Series Shallow Sand Filter Can Use Ordinary Various Media But Mainly Based On Quartz Sand, We Recommend 2 Kinds Of Quartz Sand Below

Bottom Sand

Cover the Catchment

Upper Sand

(400mm Thickness)

Recommend Volume Backwash Volume
1.0-2.0 mm 1.0-2.0 mm 40-50 m3/h 35-55 m3/h
1.0-2.0 mm 0.5-1.0 mm 15-25 m3/h 25-40 m3/h

Ordinary Quartz Sand Filter System Parameter

SN. Type Dimension (m) Filter Area

Coarse volume


Fine Volume T/H

Sand Weigh


1 LSSF-1 1.22 x 1.22 x 2 1.13 40-50 15-25 860
2 LSSF-2 2.64 x 1.22 x 2 2.26 80-100 30-50 1720
3 LSSF-3 3.96 x 1.22 x 2 3.39 120-150 45-75 2580
4 LSSF-4 5.28 x 1.22 x 2 4.52 160-200 60-100 3440
5 LSSF-5 6.95 x 1.22 x 2 5.65 200-250 75-125 4300
6 LSSF-6 8.32 x 1.22 x 2 6.78 240-300 90-150 5160

Comment:for those more large flow volume , we can use more filter unit by connecting with different tube , valve with standard DIN joints.


Factory Sell Maintenance-free LSSF-5 Shallow Activated Quartz Sand Filter 2


Technique Condition

Fluid media Water Material Casted iron or plastic
Max. Temp. <70℃ DN range DN20-DN600
Pressure PN16 Joint way Bolt, Flange or others
Start pressure >0.07MPa Life time 10/15 year for PVC/Metal


Applicant of The Filter

  • Industrial Water Filter
  • Steel Factory Oxygen Lance Water Filtration
  • Feeding Water for Clogging of Boiler and Heat Exchanger Pipeline filtering

2. Industrial Circulated Water Filtering System.

3. Raw(surface, Lake, Sea, Well Waterworks) Water Disposal-- Remove Grain, Sand , SS, Algae And Organics

4.Agricultural Irrigation—such as Farmland Irrigation, Park And Golf Course Turf Irrigation

5. Industrial Waste Water Treatment

6. Aquaculture, Swimming And Water Park Industry.

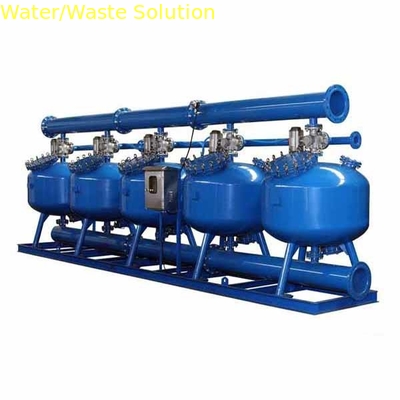

LSSF-5 Shallow Sand Filter Whole System Composition Parts

SN Item Specification Quantity Unit
1 body Low layer sand filter LSSF-5 2 sets
2 part Cylinder shell Φ1200×1900mm 5 pcs
Water distributor Mushroom shape 5 sets
Quartz sand 1.0-2.0mm 6.5 Tons
Two-ways valve DN100 5 pcs
Entry pipeline DN200 1 sets
Discharge pipe DN100 1 sets
Auto air discharge valve DN25 1 pc
Pressure switch   1 pc
Input and output Manual valve DN200 2 pcs
Discharge Manual valve DN100 1 pc
Skid 6950×1220mm 1 pc
Control panel   1 pc
